Components
|
|
330 ohm Resistor |
x 7 | |
|
|
LED |
x 7 | |
|
|
Slide Switch |
x 1 | |
|
|
Push Button Switch |
x 1 | |
|
|
IC Socket |
x 1 | |
|
|
ATTINY25-20PUAtmel
|
x 1 | |
|
|
3 AAA Battery Holder |
x 1 |
Description
Rolling the Dice

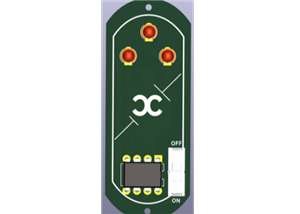

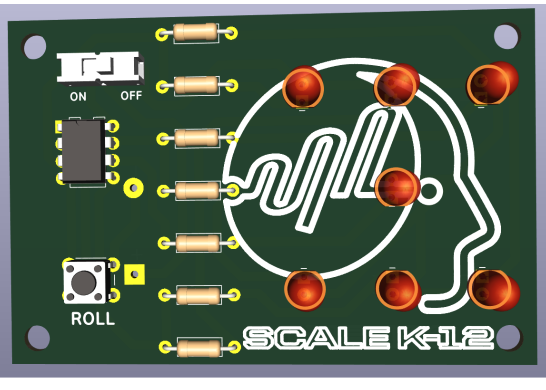

This digital dice roller was designed for an engaging activity to introduce High School students to the captivating world of microelectronics. With this project students will use the Printed Circuit Board (PCB) to create a device that functions as a digital dice roller. The PCB, with the programmed chip, acts as a random dice generator.

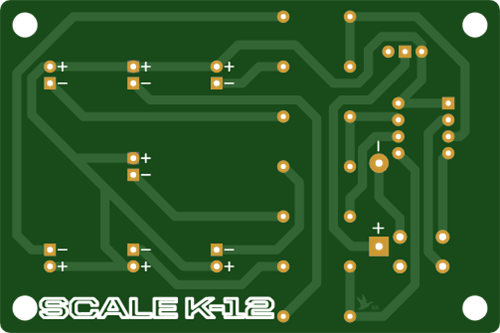

Schematic and Layout
Step-By-Step_Soldering Tips.pdf
Apr 18,2025
354 views
Rolling the Dice
Digital dice roller for teaching about PCBs and Microelectronics.
354
2
2
Published: Apr 18,2025
Standard PCB
Download Gerber file 5
BOM(Bill of materials)
PCBWay Donate 10% cost To Author
File Last Updated: 2025/05/19 (GMT+8)
File update record
2025-05-1922:57:42
Parts List (BOM) is updated.
Only PCB
PCB+Assembly
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
