Components
|
|
Push Button Switch |
x 1 | |
|
|
LED |
x 3 | |
|
|
Slide Switch |
x 1 | |
|
|
220 Ohm Resistor |
x 9 | |
|
|
74LS08 |
x 2 | |
|
|
SN74LS32NTexas Instruments
|
x 1 | |
|
|
SN74LS32NTexas Instruments
|
x 1 | |
|
|
3 AAA Battery Pack |
x 1 |
Description
Rock, Paper, Scissors Game

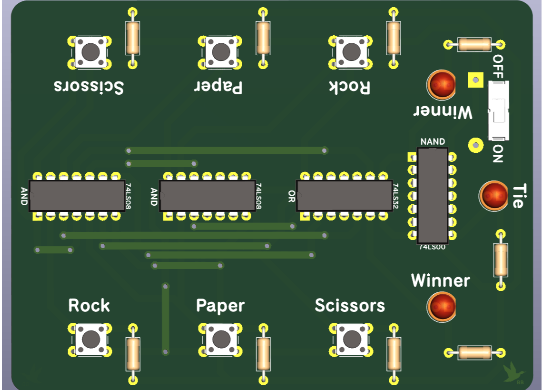

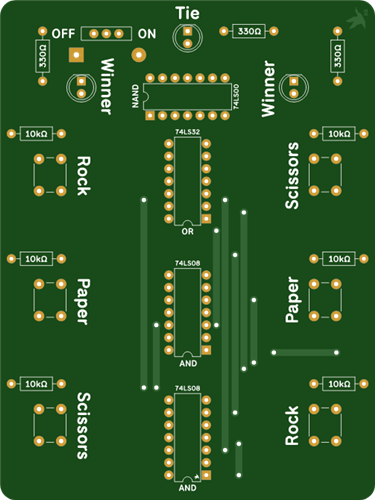

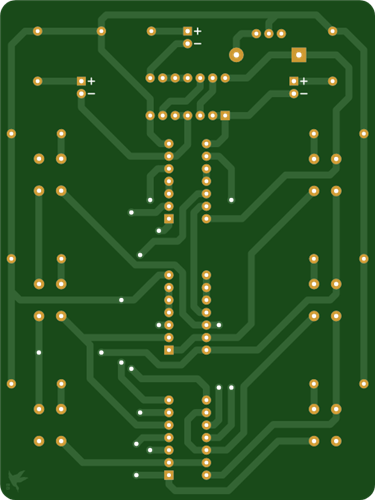

This a PCB that serves as a 2-player rock, paper, scissors game. The point of this PCB is to teach students about digital logic.
Apr 23,2025
257 views
Rock, Paper, Scissors Game
A two-player rock, paper, scissors game PCB to help teach students about logic chips.
257
1
1
Published: Apr 23,2025
Standard PCB
Download Gerber file 2
BOM(Bill of materials)
PCBWay Donate 10% cost To Author
File Last Updated: 2025/05/19 (GMT+8)
File update record
2025-05-1922:57:17
Parts List (BOM) is updated.
Only PCB
PCB+Assembly
