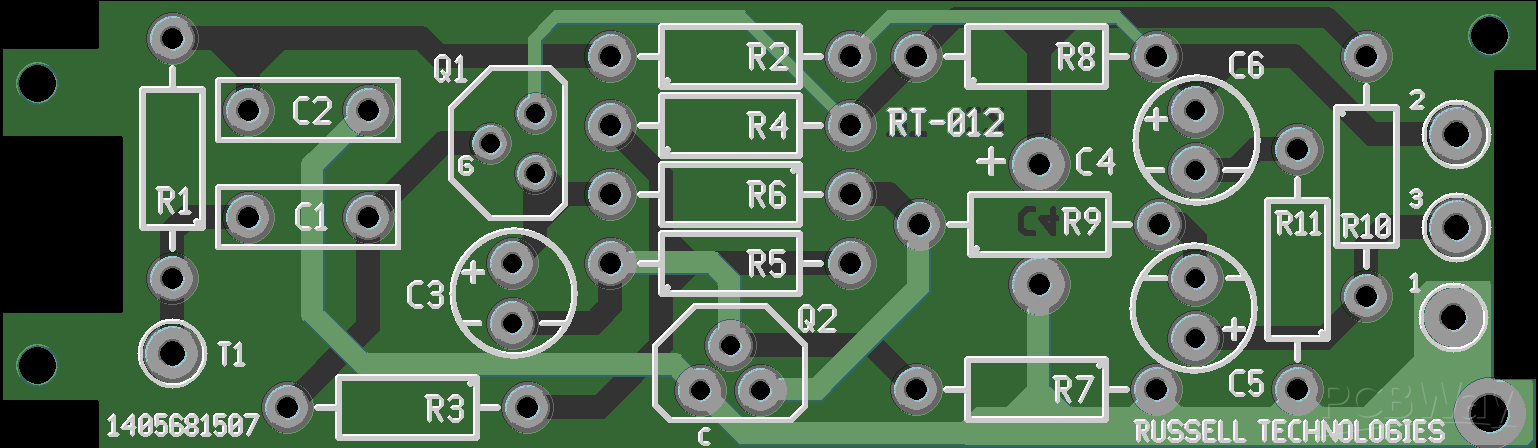

RT-012 PCB for the Oktava MK-012 microphone
This is the PCB described on my website at http://russelltechnologies.co.uk/rt-012.html
Please visit for complete description and construction photos.
The PCB should be manufactured with a board thickness of 1mm, 2 layers, 1oz copper.
RT-012 PCB for the Oktava MK-012 microphone
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
Please review the designer's notes (e.g., PCB thickness) and select the appropriate options.
PCBWay is not responsible
for issues caused by unsuitable parameter selections.
