Description

RF link with NRF24l01+ (using frequency hopping spread spectrum - FHSS)

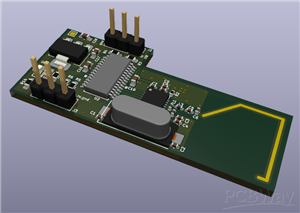

A small PCB with NRF24l01+ RF transceiver, XMC1302 MCU, and PCB antenna that can communicate on 2.4 Ghz.

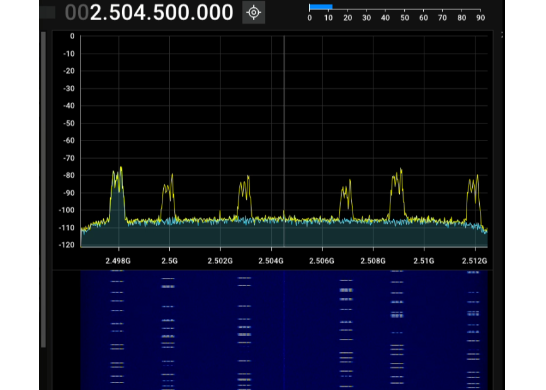

The XMC1302 MCU is added with an NRF24l01+ transceiver to easily implement FHSS and SPI communication. As a toy example, the transmitter hops every 5 ms and uses 16 channels. For now, one way communication is done. In the future, we will support bi-directional communication with a UART interface.

Software will be uploaded on our GitHub page.

We also have a version with Silabs wireless Gecko series that will be launched in sometime. Follow us for more information and exclusive design files !

Download Gerbers Download BOM(Bill of materials)

Jul 27,2026

25 views

RF link with NRF24l01+ (using frequency hopping spread spectrum - FHSS)

A small toy example using NRF24l01+, XMC1302 MCU, and PCB antenna to implement a radio link.

Published: Jul 27,2026
