Intro:

The Pressure Tap Block (PTB) allows a pressure transistor to be mounted close to the Gaggia boiler/group head, while the PTFE tubing acts as a heat break to limit thermal effects on the transducer. Significant testing was done to ensure the tubing will self-fill during normal operation, circulate water, and report accurate pressures.

Ordering:

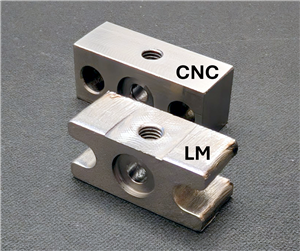

For ordering on PCBWay, the PTB should be made with CNC Machining from 300 series stainless steel, smooth machining finish recommended, tapping required.

Other materials can be purchased locally or AliExpress. Make sure to check temperature ratings of the fittings!

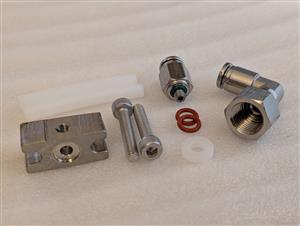

Materials:

BOM with product links is at https://gaggiuino.github.io/#/?id=bill-of-materials under the Pressure Tap Block tab.

• 2x M5x25 Stainless Steel Socket Head Screws
• 1x 010 Silcone O-Ring (1/16 x 1/4 x 3/8) - same as Gaggia 996530063887
• 1x PC6-M5 Stainless Steel Fitting, ideally 180+ C temp rating
• 1x PLF6-02 Stainless Steel Fitting, 120+ C temp rating
• 1x Flat gasket/o-ring | 1/4 inch pipe (11 x 6 mm), 3 mm thick
• 1x 6x4 mm PTFE tubing

Assembly:

Assembly instructions are on the Gaggiuino website. See the Pressure Tap Block tab under the Pressure Transducer section on either the Stock Wiring Integration or Custom Wiring Integration page.
