PolyDryer Annealing Mod – Soften, Dry & Anneal Your Prints

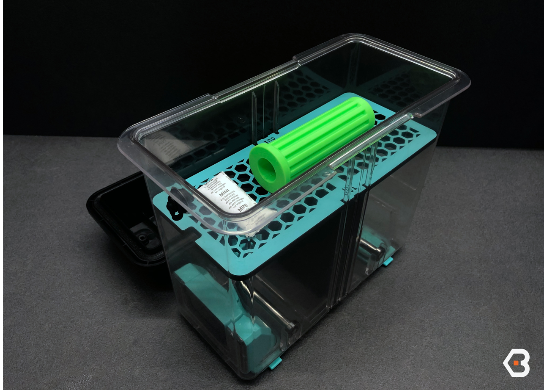

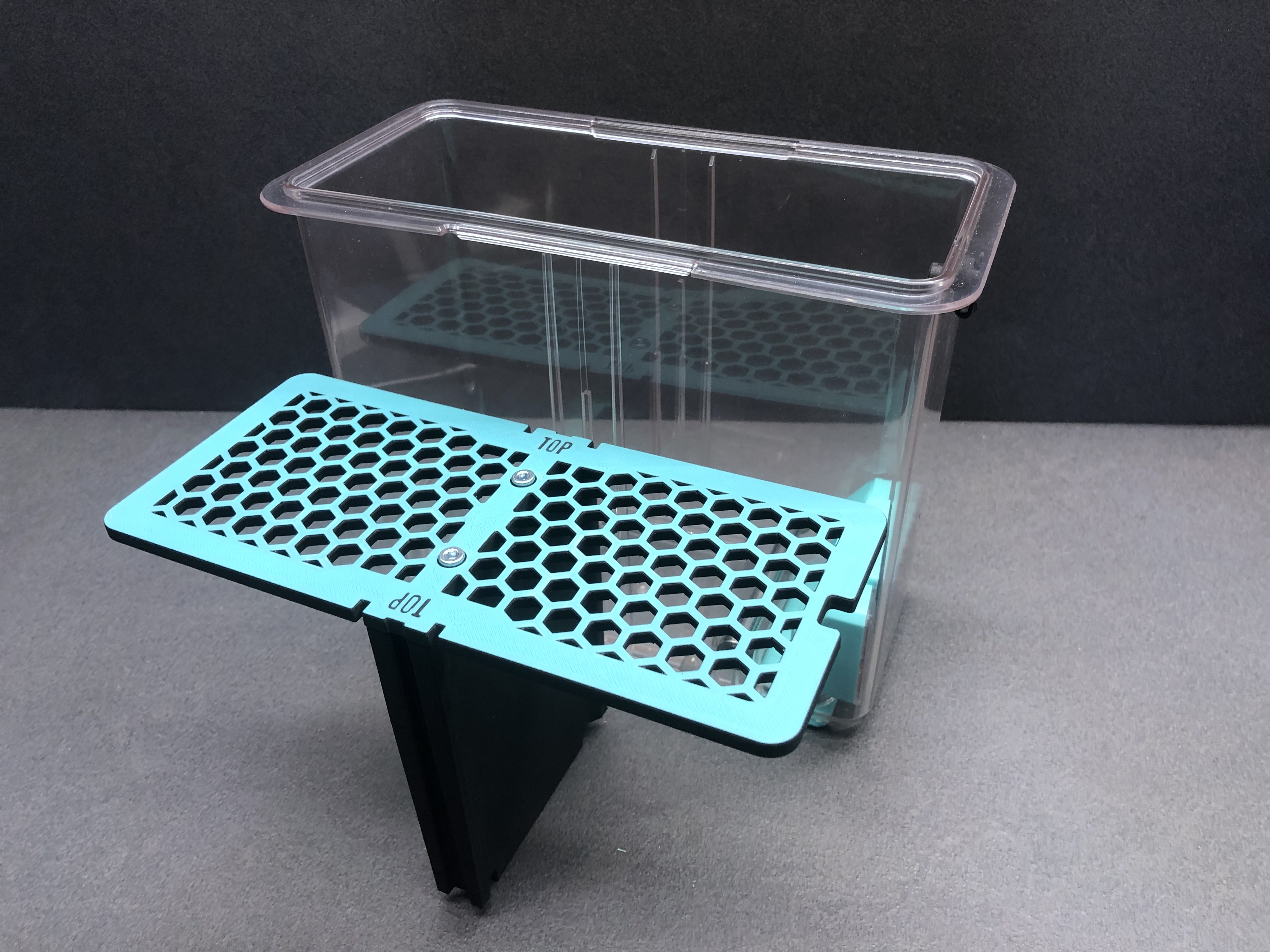

This mod platform is designed to be placed inside the Polymaker PolyDryer, transforming it into a more versatile tool for makers. By elevating objects inside the chamber, it allows more efficient use of heat for post-processing and material treatment.

Key Features

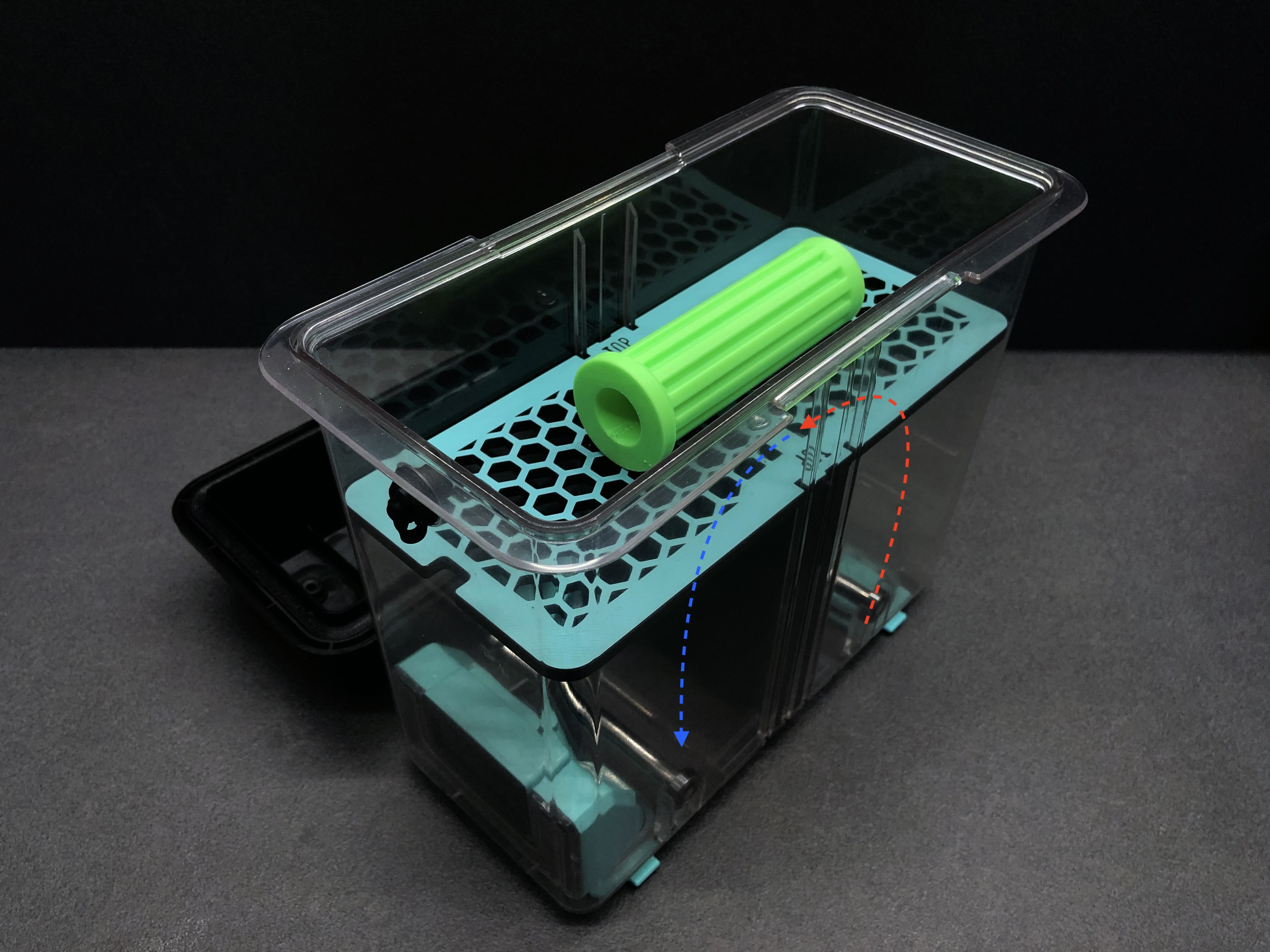

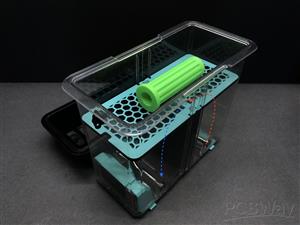

Dual-chamber heat flow – thanks to the central wall, the inner space is divided into two sections. This directs the hot air upwards, ensuring faster heating with less heat loss.

Annealing – improve the strength and stability of your 3D printed parts by heat-treating them.

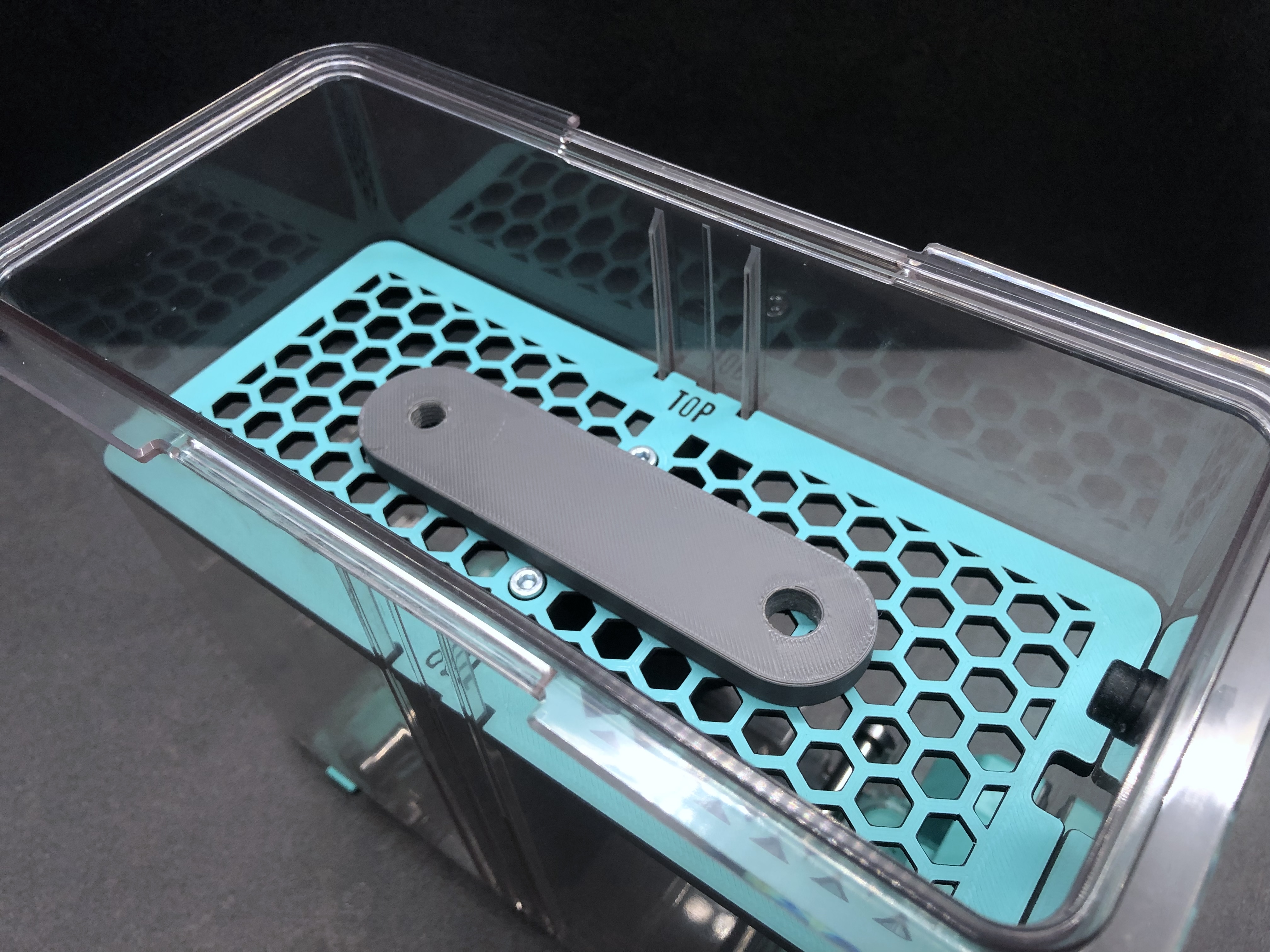

Softening & reshaping – warm up PLA or PETG prints to adjust tolerances or reshape them for special applications.

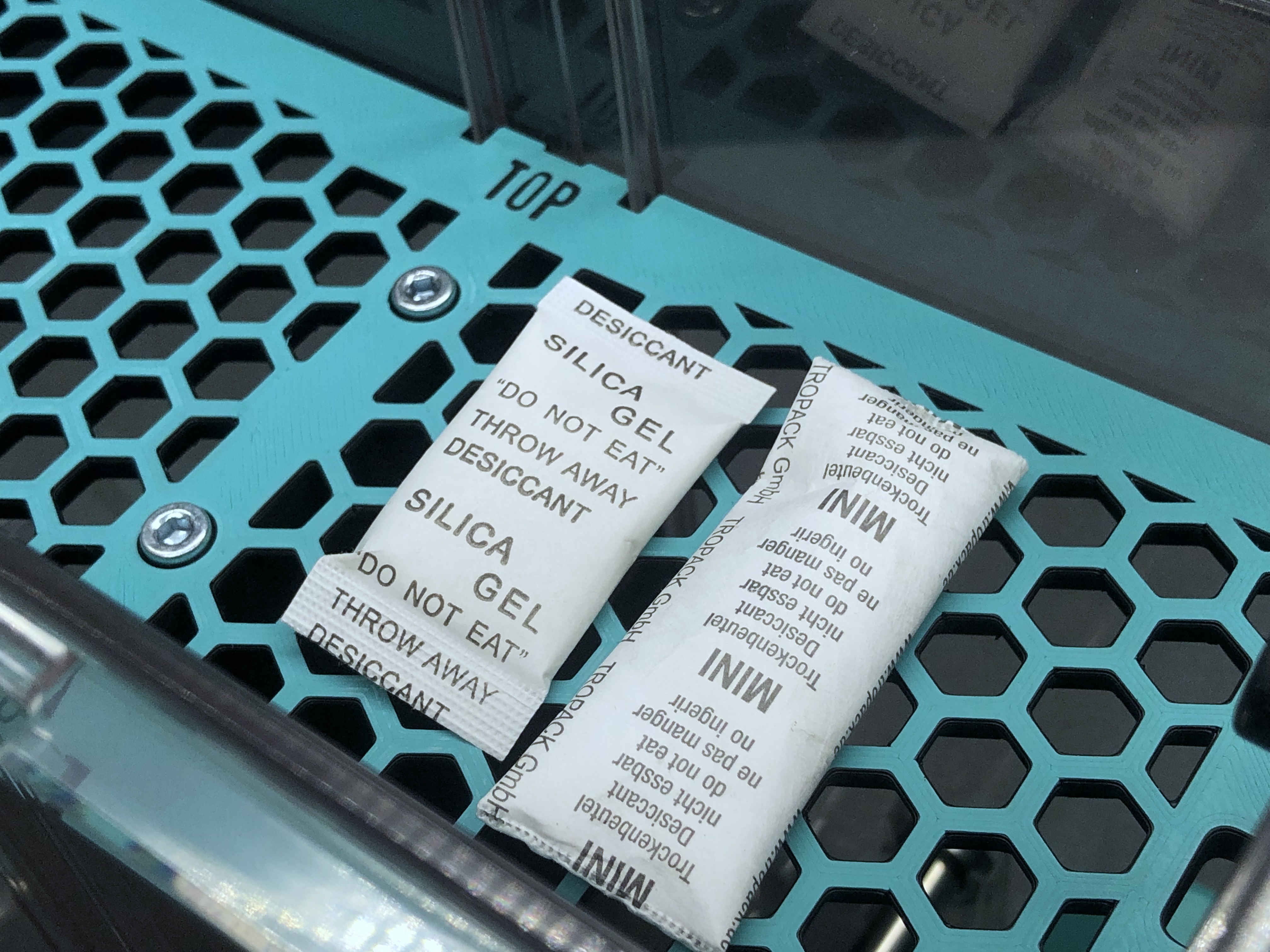

Silica gel drying – regenerate silica gel packs easily by placing them on the elevated platform.

⚠ Always print this mod in a heat-resistant material to avoid deformation of the structure itself.

Recommended materials:

Prusament PCCF Blend

Polymaker HT-PLA

Other high-temperature composites (avoid nylon, as it tends to warp under constant pressure).

Printable Files & Quantities

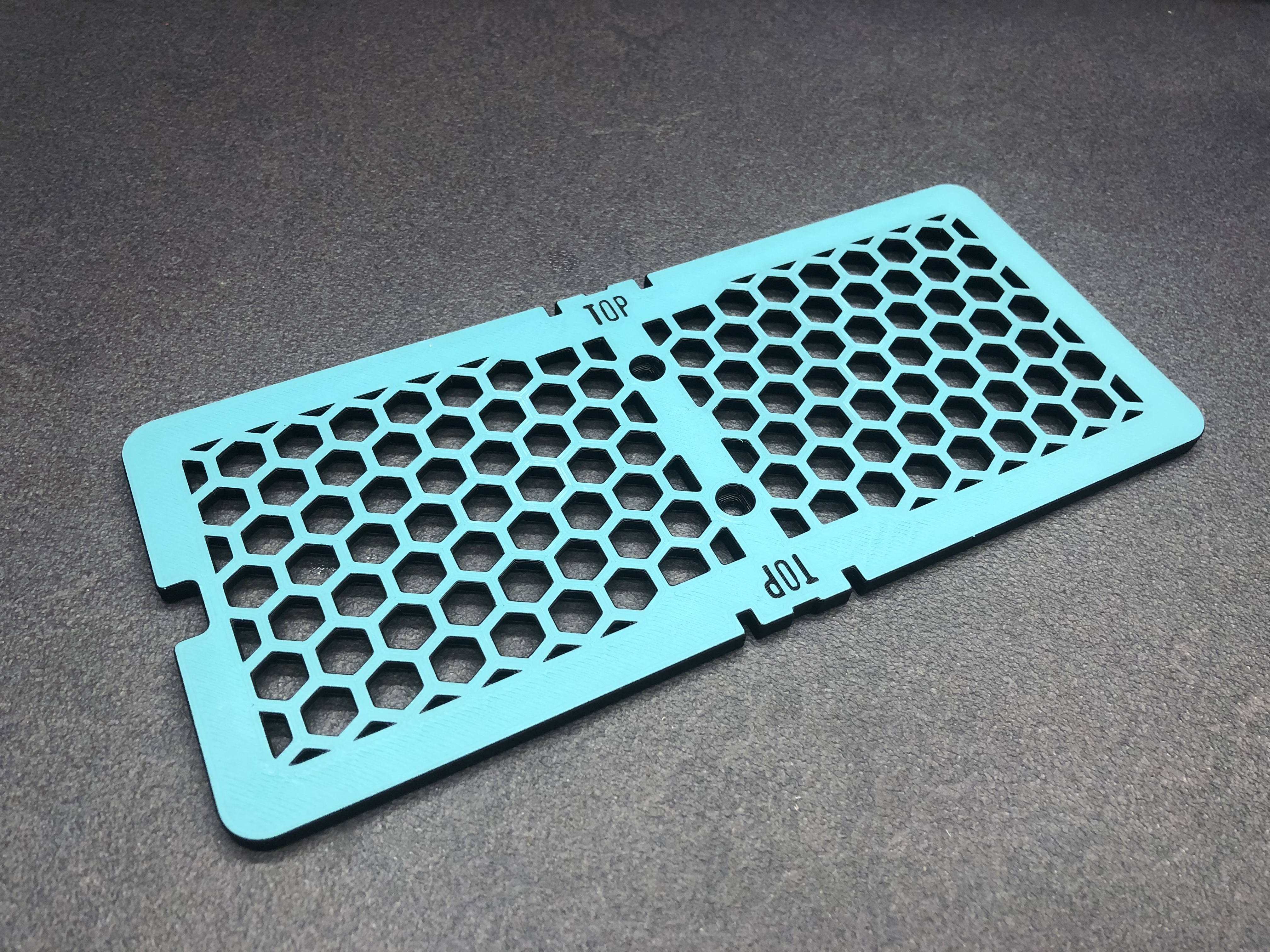

Top Plate 1X

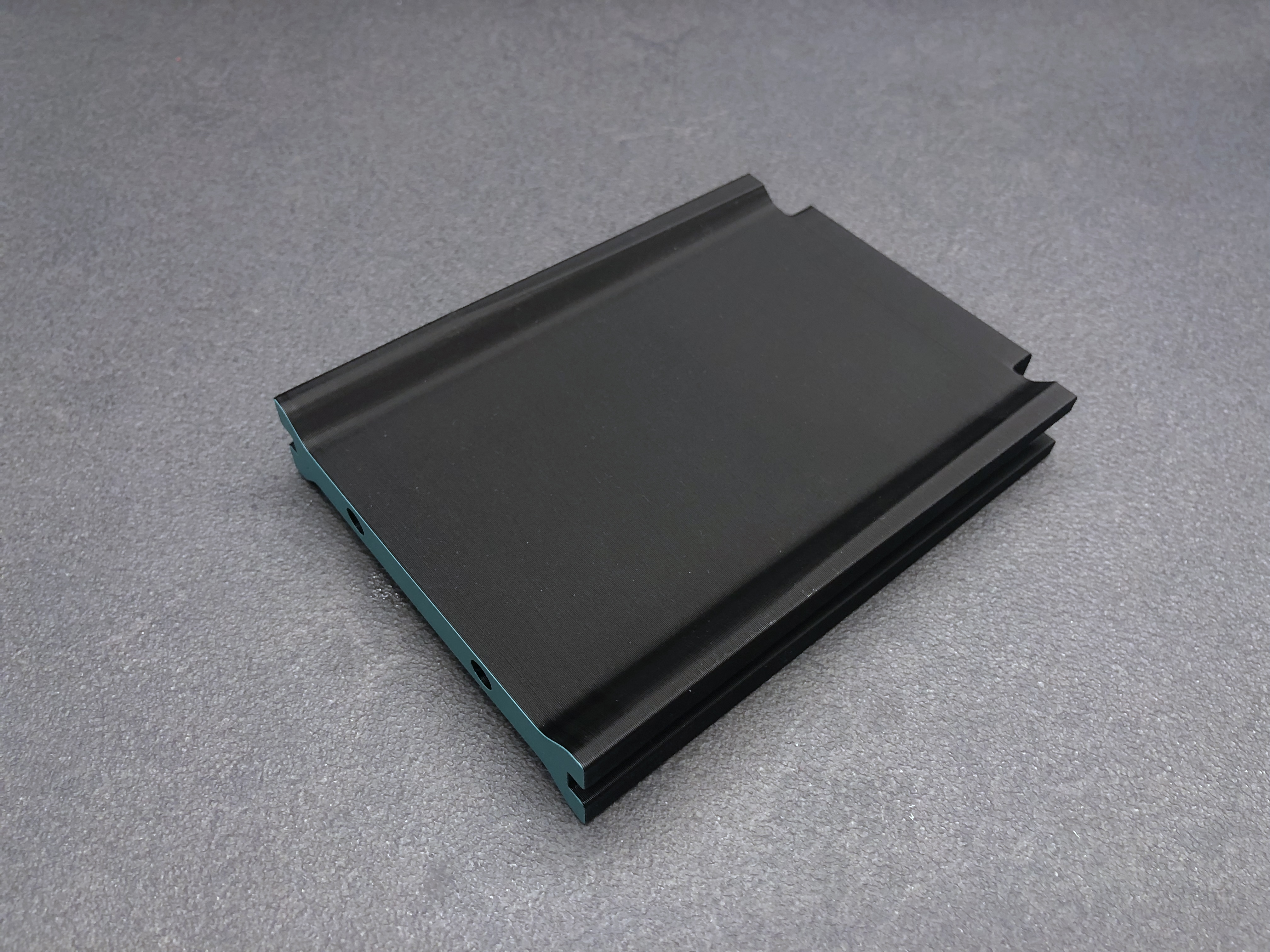

Central Wall 1X

Slicer Settings

Layer Height: 0.2 mm

Infill: 100%

Supports: No

Brim: Yes (only for Central Wall)

Additional Hardware

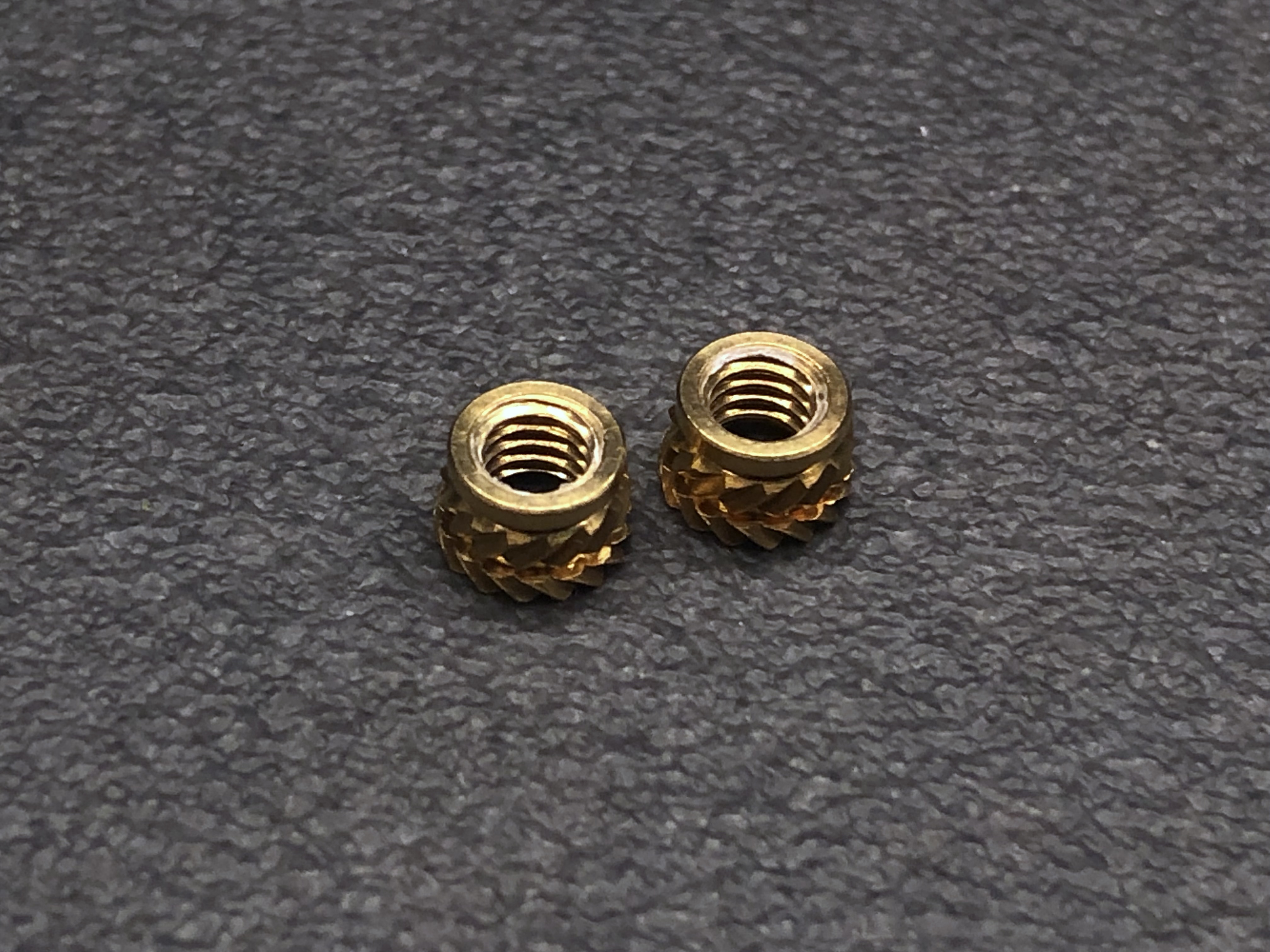

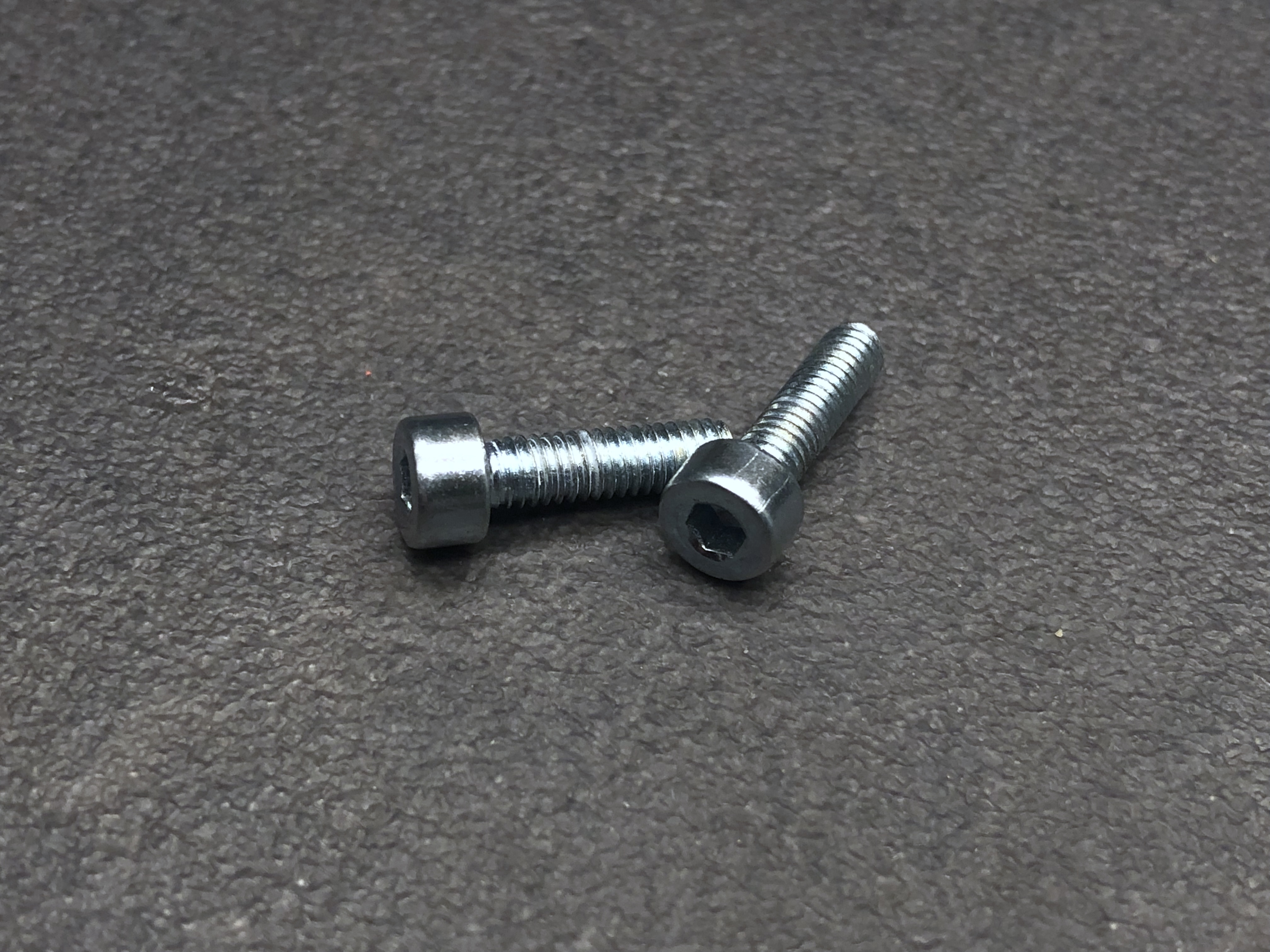

2 × M4x10 screws                               2 × M4 threaded inserts

Assembly Guide 🛠

Print all the required files (Top Plate and Central Wall).

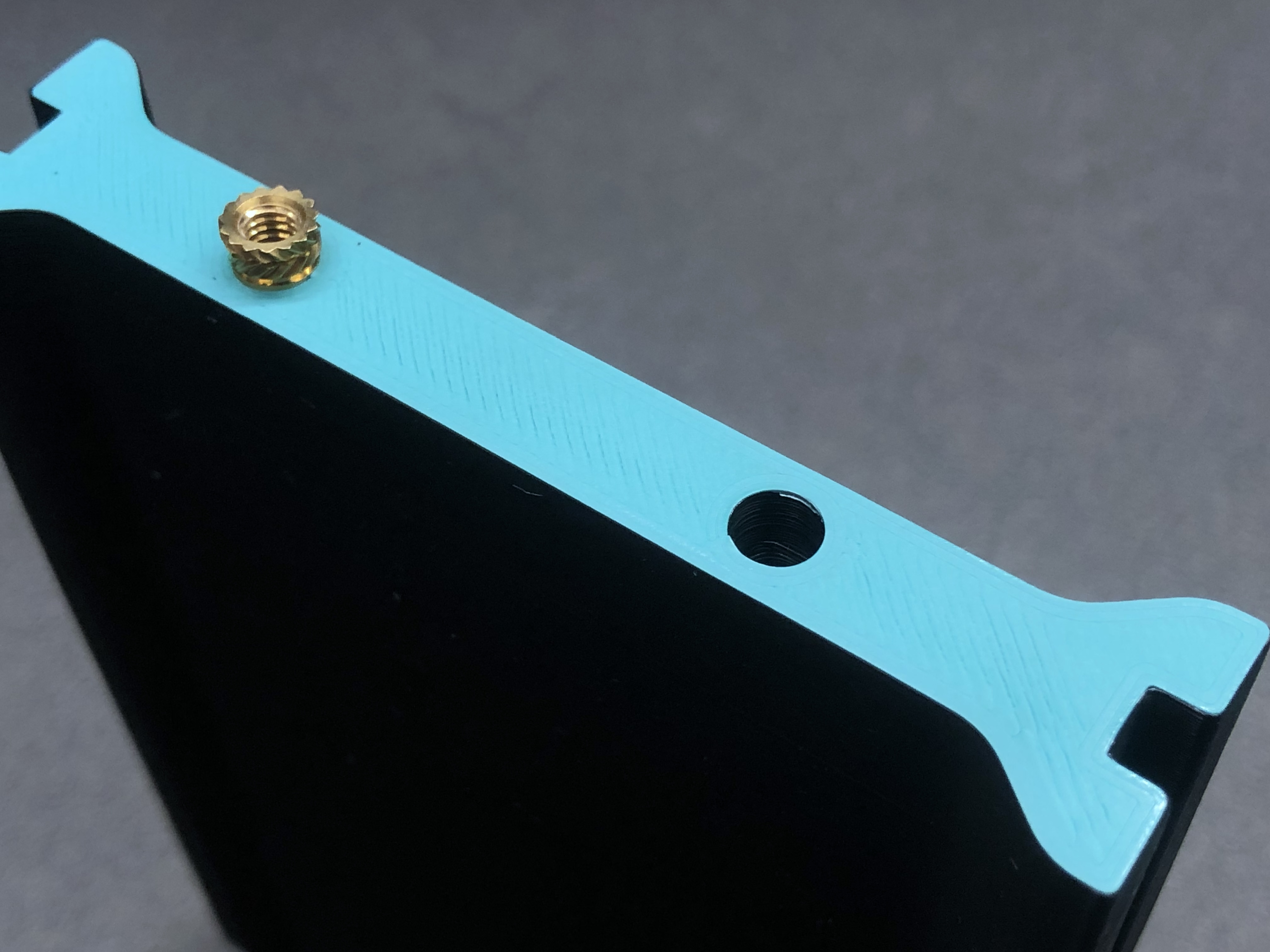

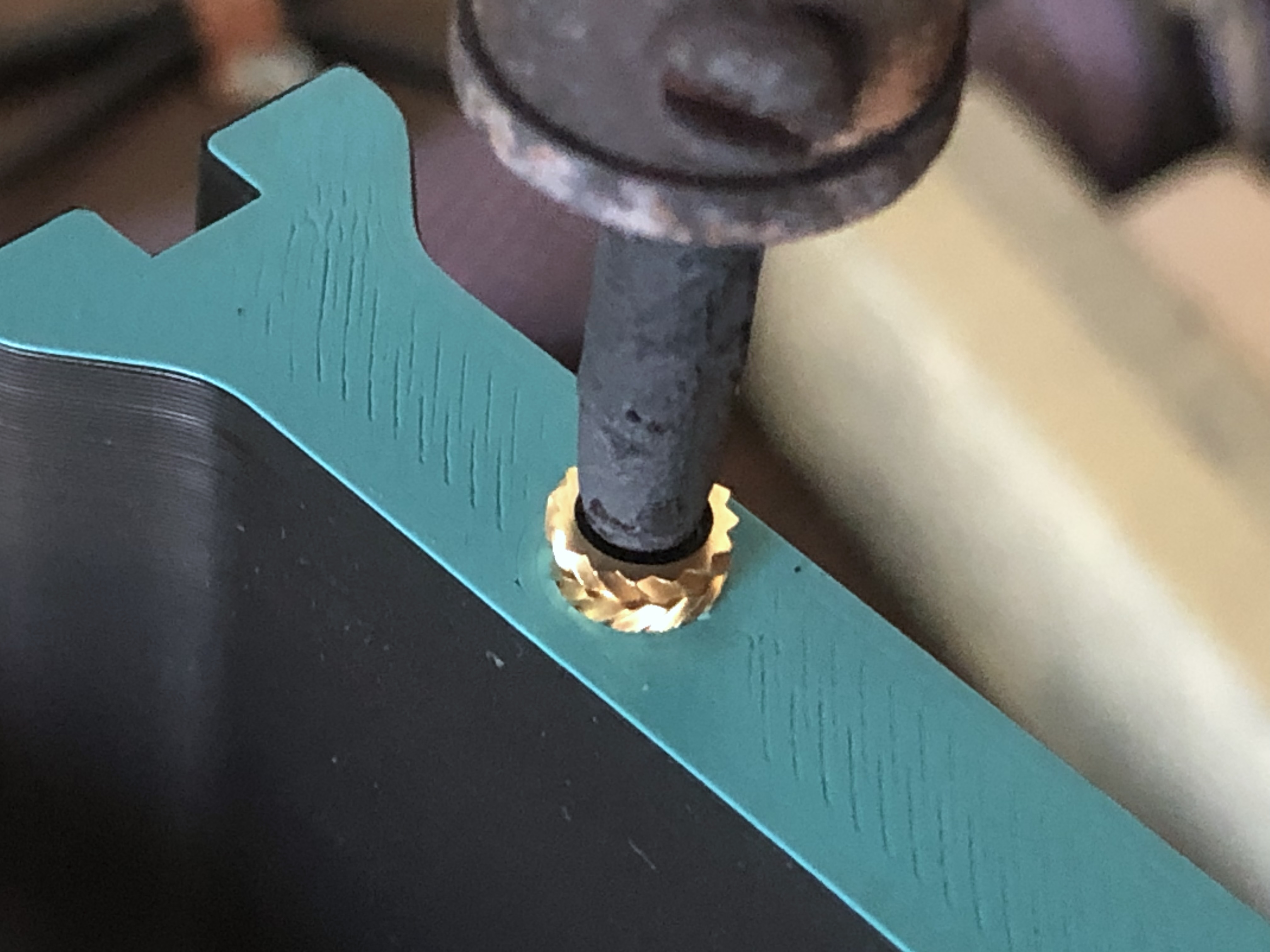

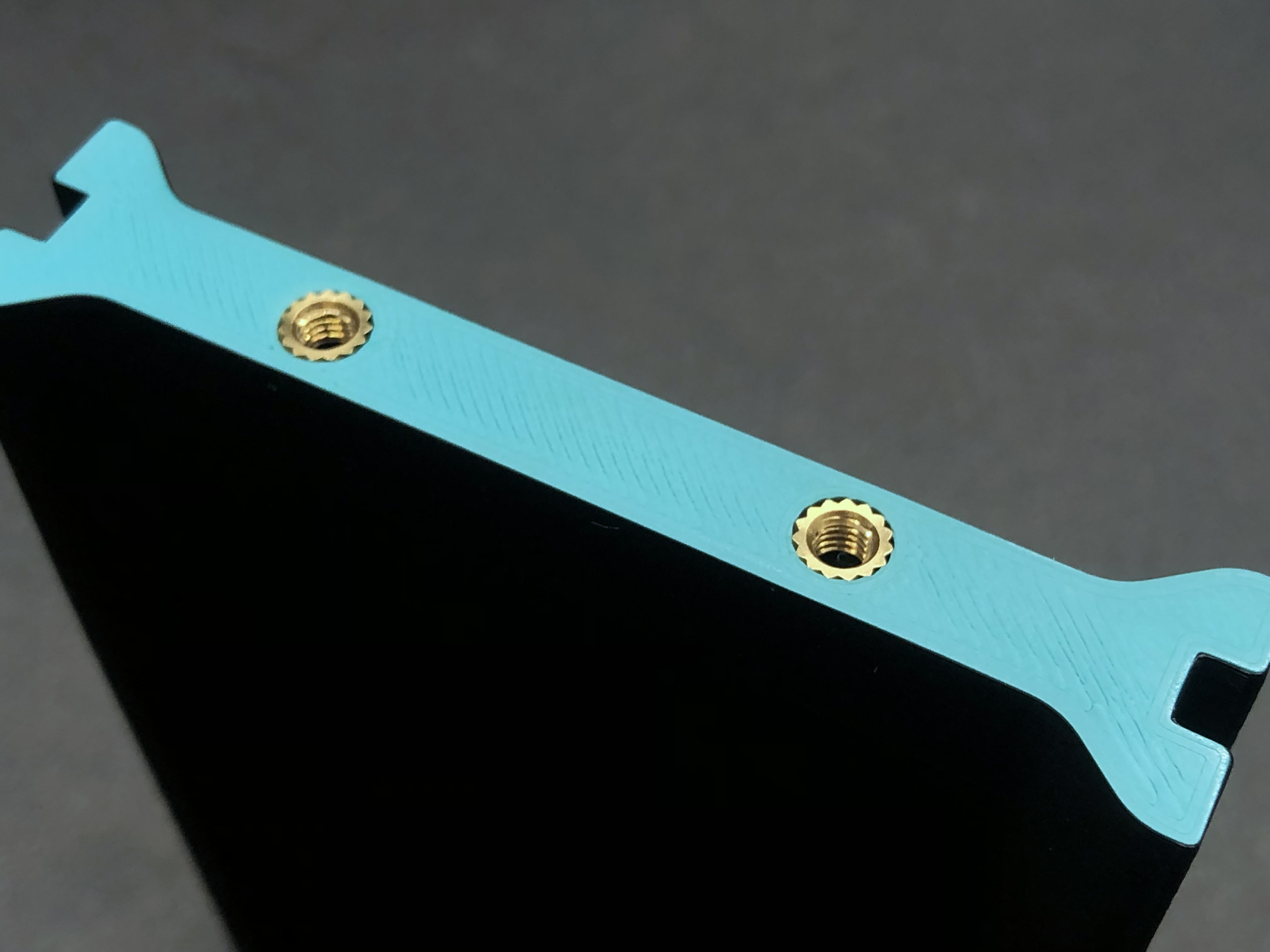

Take the Central Wall and insert the two M4 threaded inserts using a soldering iron.

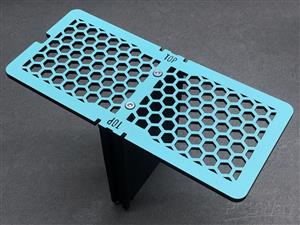

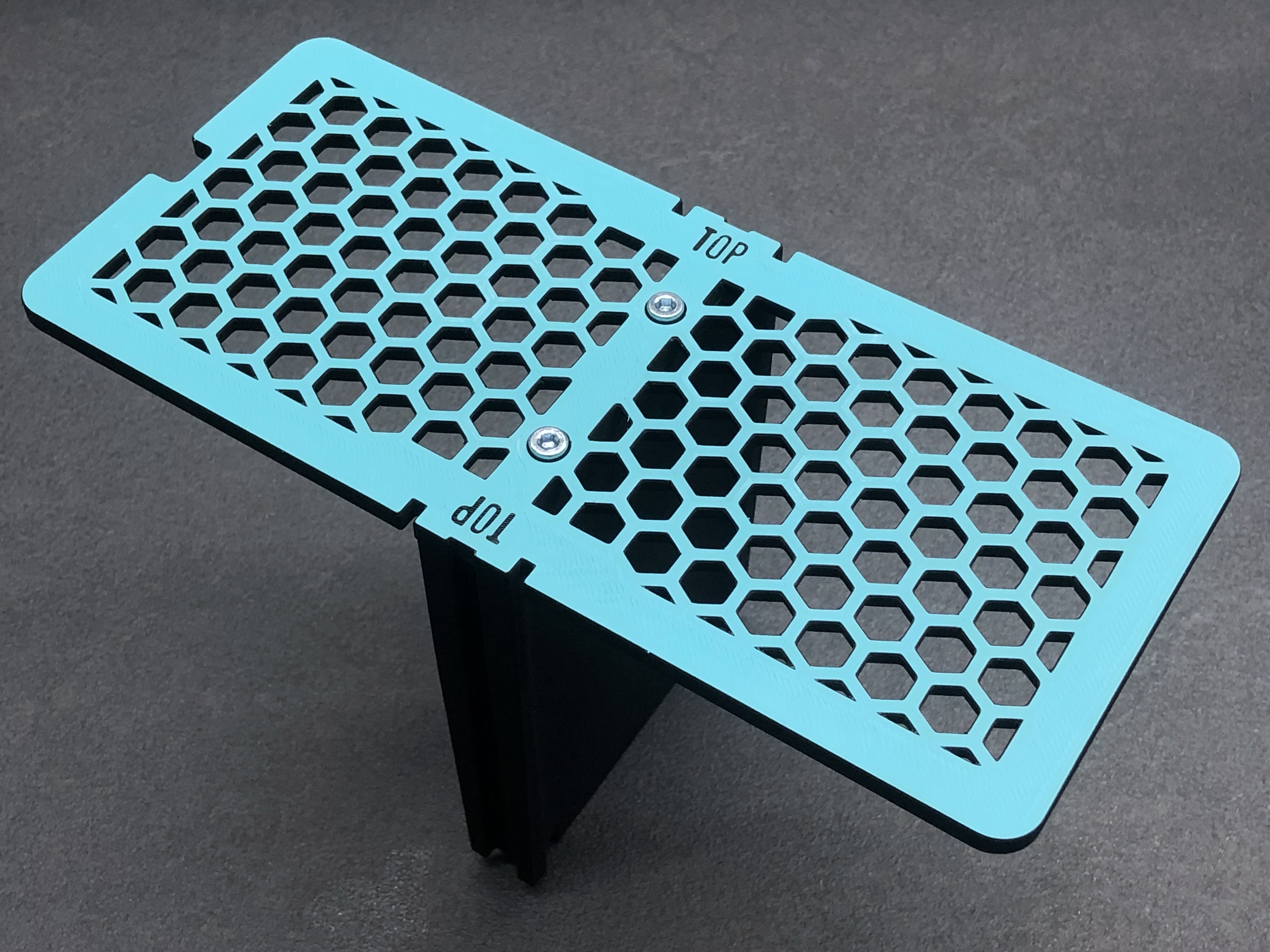

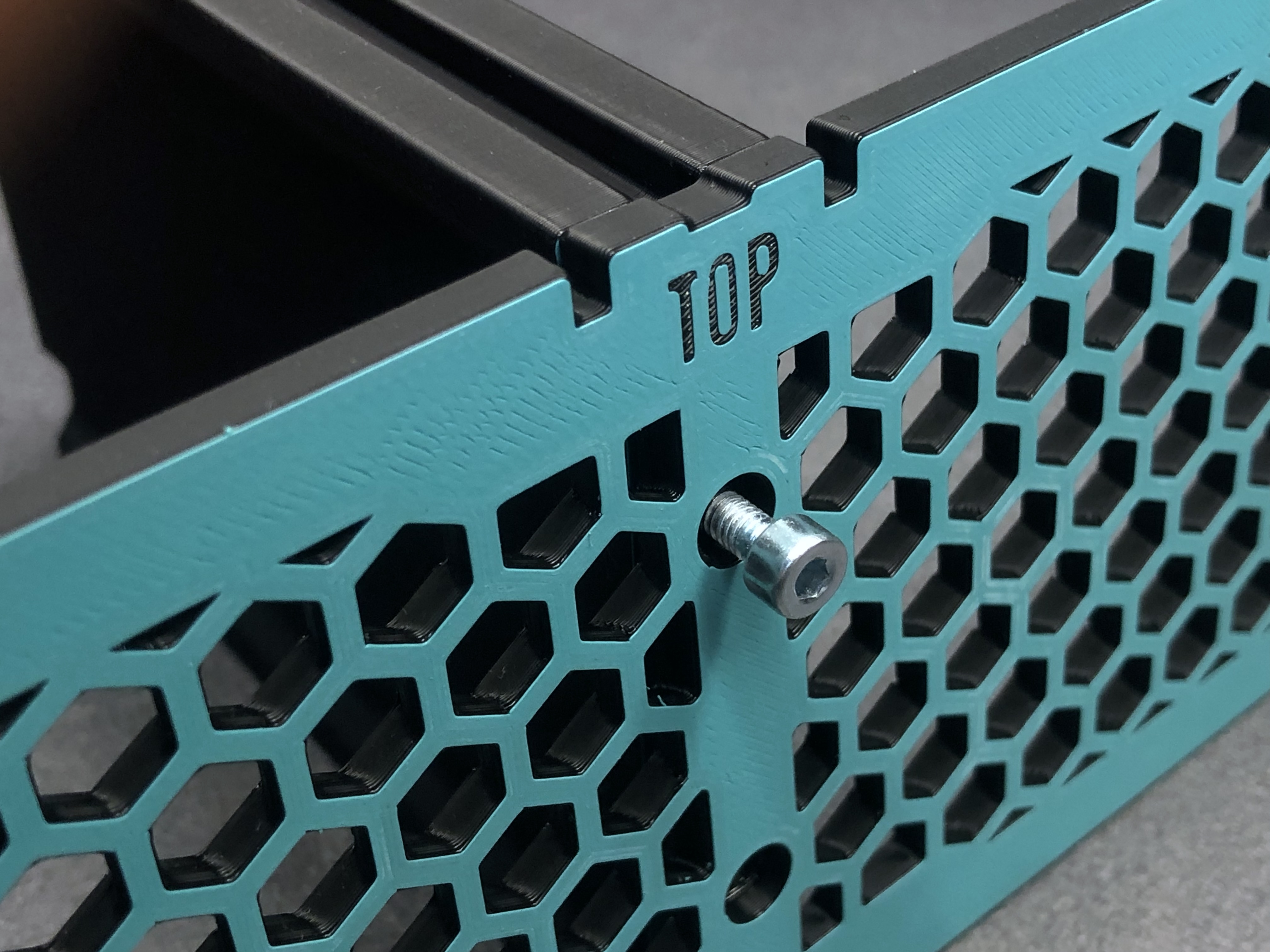

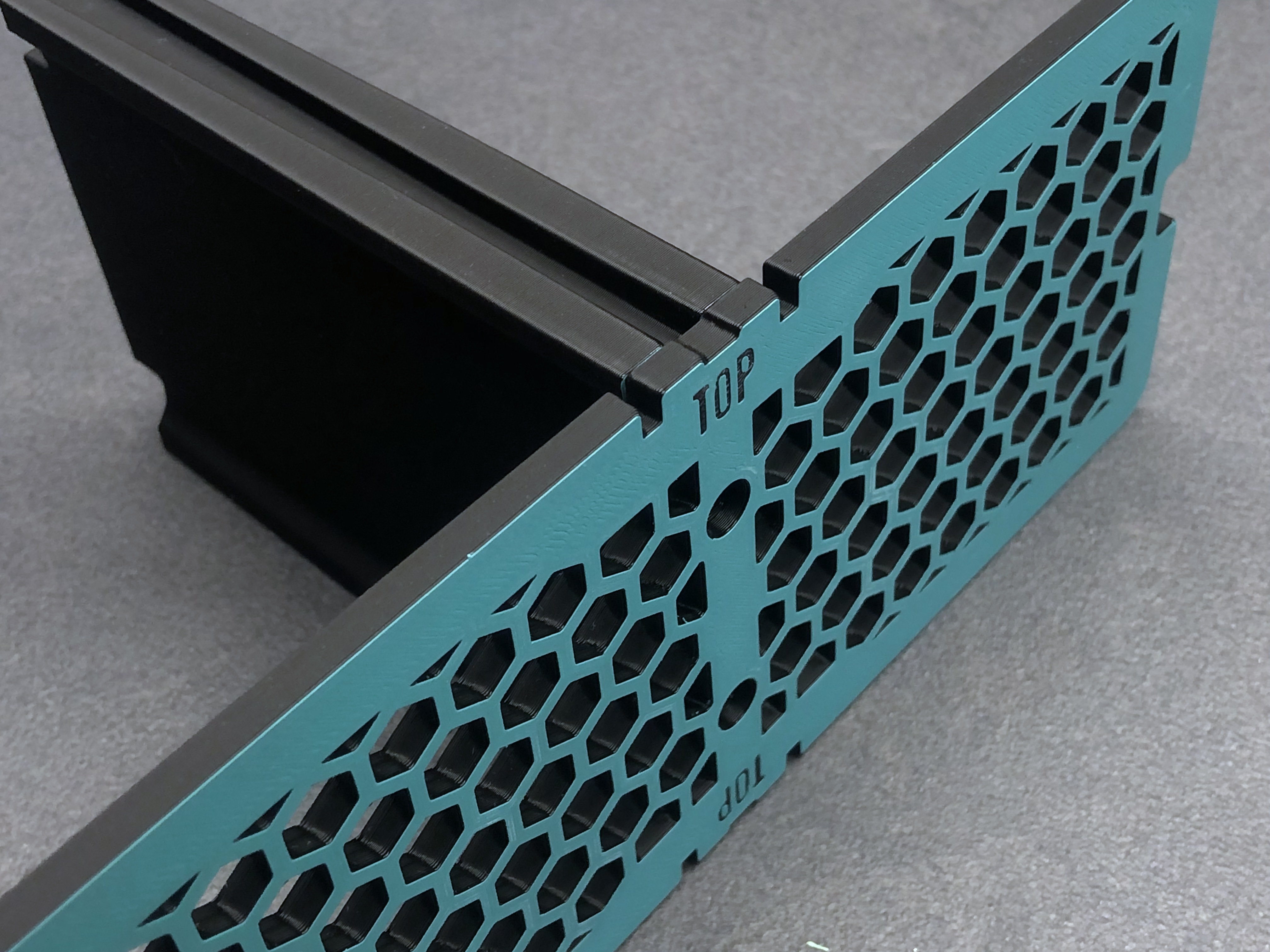

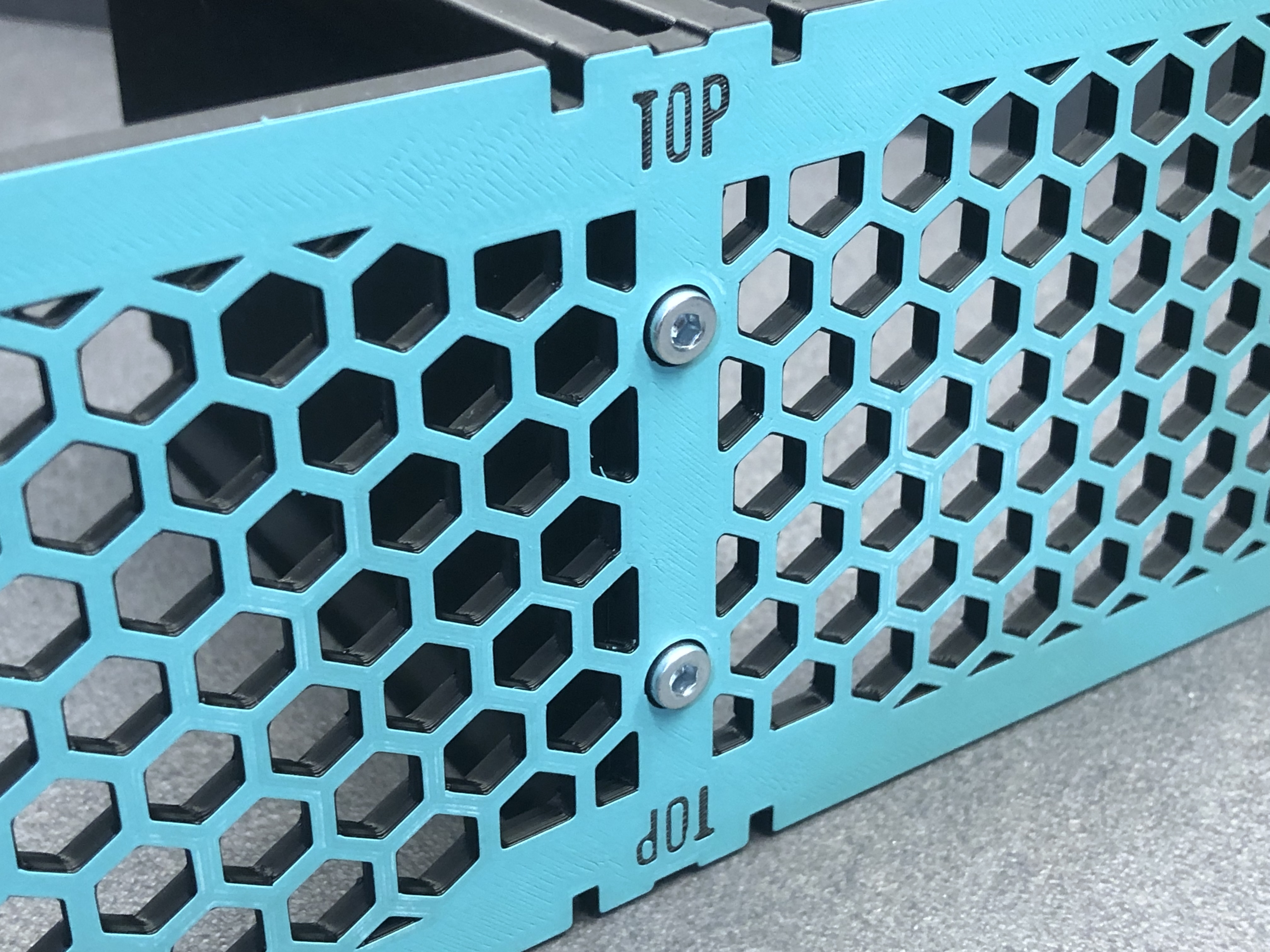

Align the Central Wall with the Top Plate and fasten them together with the two M4 screws.

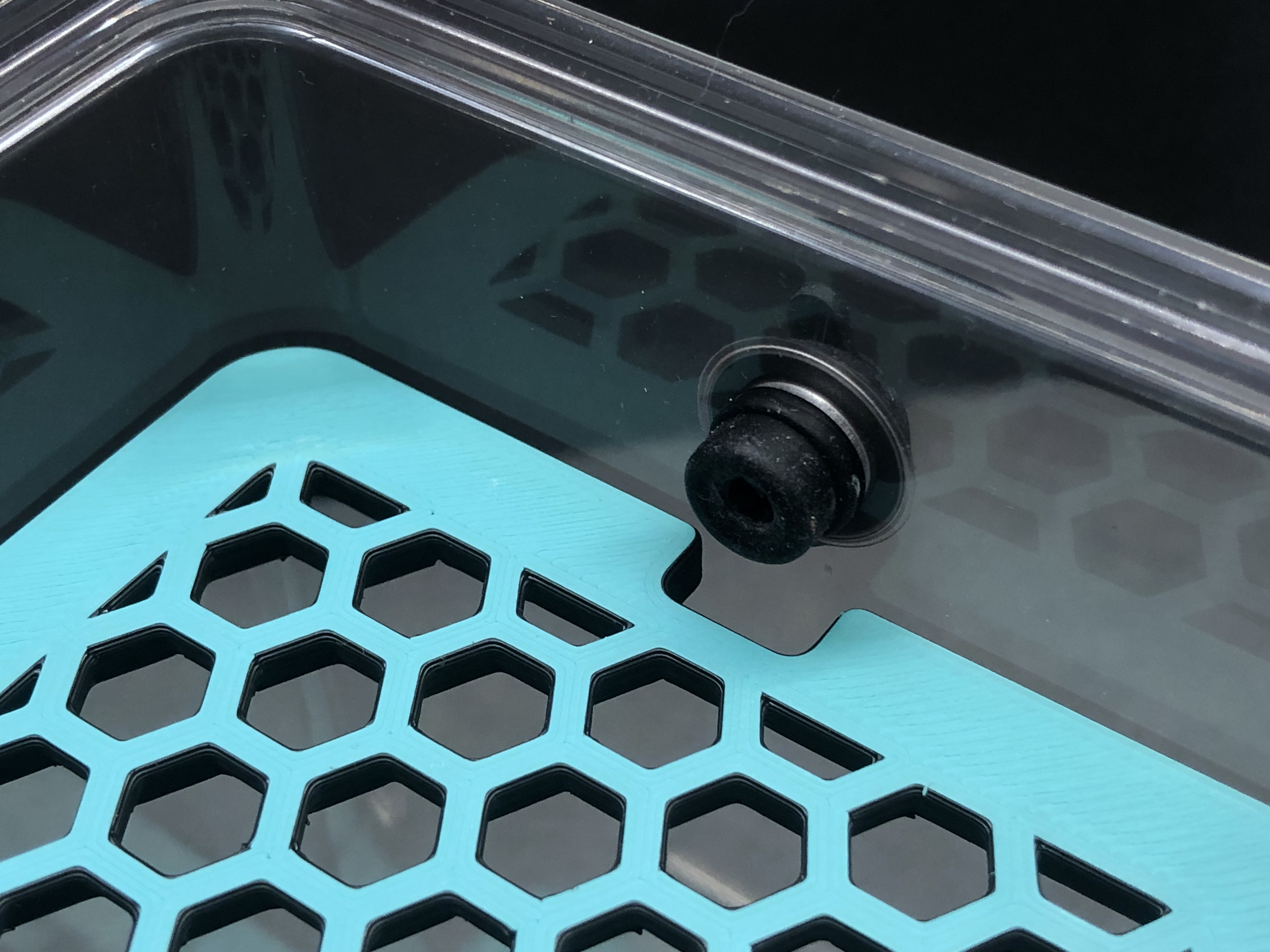

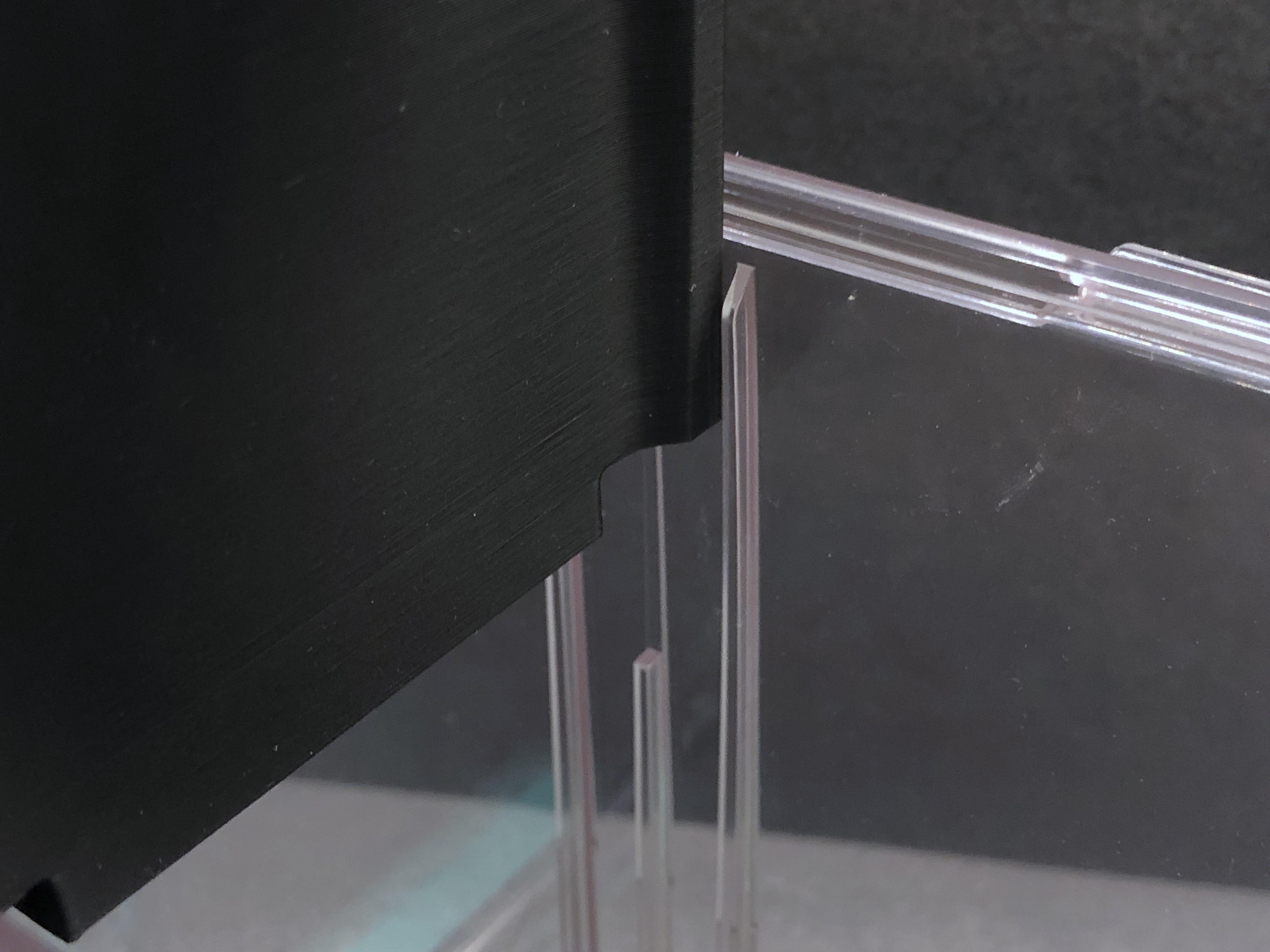

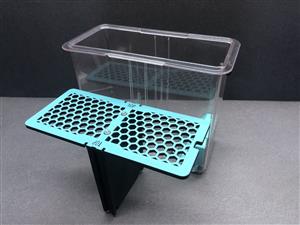

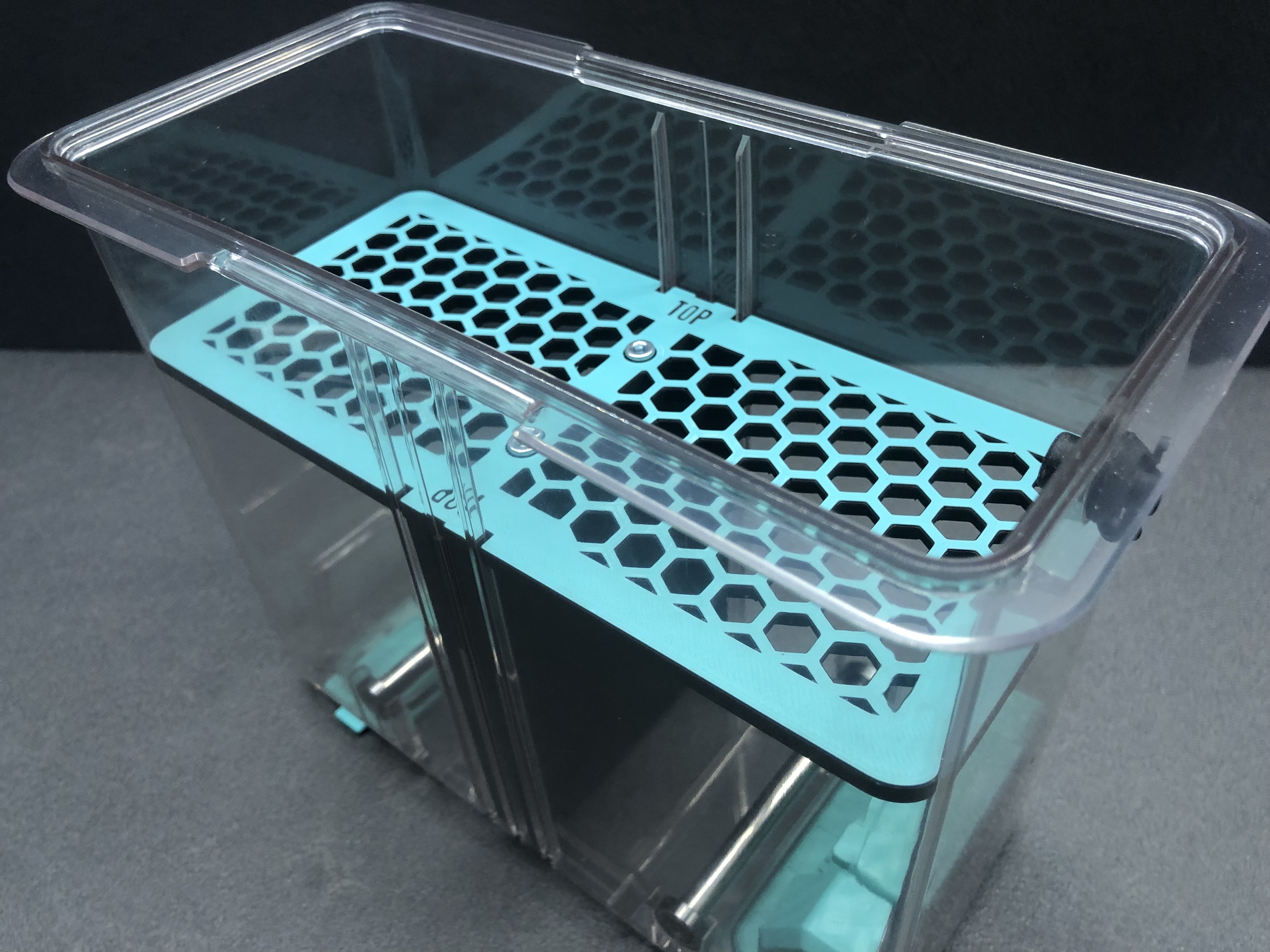

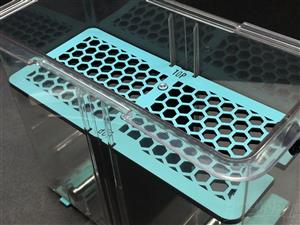

Once assembled, simply place the structure inside the PolyDryer and you’re done! 🎉
