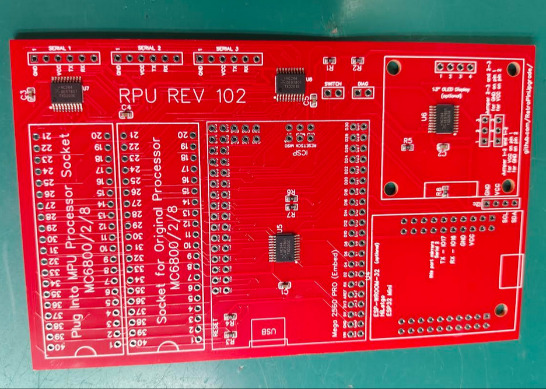

Pinball RPU V102 project

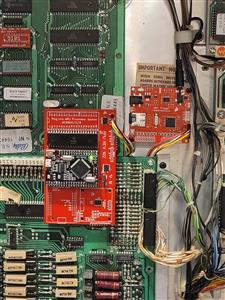

Retro Pin Upgrade (RPU) is an inexpensive circuit board (DIY for under $50) that plugs into a pinball machine’s main board (MPU) and takes control. Using an Arduino microcontroller, RPU takes over the lamps, solenoids, switches, displays, and sounds of a pinball machine in order to reprogram it with all new rules. RPU can also talk to newer peripherals (like displays, RGB lamps, and polyphonic sound boards like the WAV trigger) so new features can be added to pinball machines.
More info can be found here - https://www.pinballrefresh.com/
