Pentagon LEO-1024 rev3.0

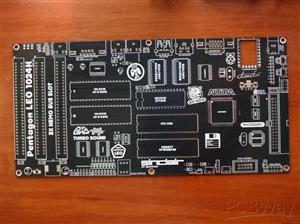

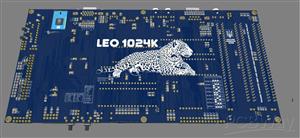

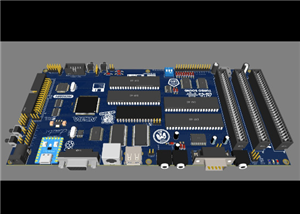

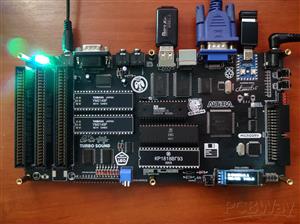

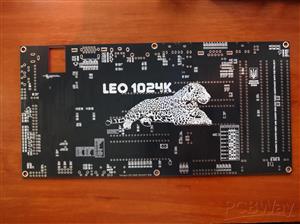

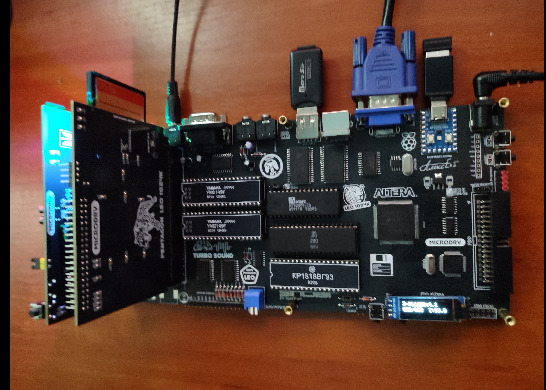

The new version 3.0 adds support for USB PS/2 keyboards and USB mouse. The number of NemoBUS slots has been increased to three. Gotek floppy disk emulator control buttons, as well as RESET and NMI (MAGIC) buttons, have been added to the PCB. The external floppy disk connector is now angled. An 8-bit joystick has been added, compared to the standard 5-bit. The 12V voltage indicator is now based on a comparator circuit.
The firmware and additional files are available at https://github.com/microdrv/ZX-Pentagon-LEO-1024K
