Description

Emulator MB8877 (КР1818ВГ93)

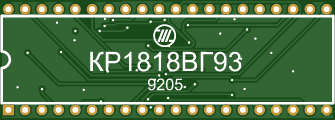

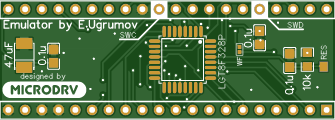

Emulator of the popular MB8877 (KR1818VG93) disk drive controller for ZX Spectrum computers. Based on the LGT8F328P microcontroller. Evgeniy Ugryumov's project, for which he is very grateful. There are several firmware versions for this project. I can provide the firmware versions (send it to my email address). I cannot make it publicly available because I am not the author of this project. I have only developed a printed circuit board that looks like a regular microcircuit. You can see the tests of this emulator on the YouTube channel:

https://youtu.be/rUDzDQmH8XQ?si=nKFw7I5Gzon17T3J

My e-mail: microdrv@gmail.com

Download Gerbers Download BOM(Bill of materials)
