Description

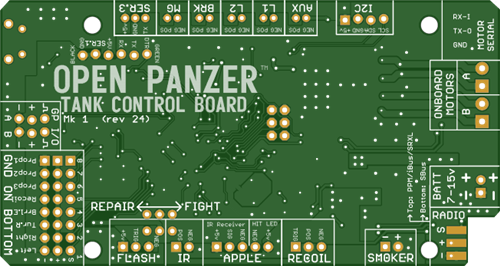

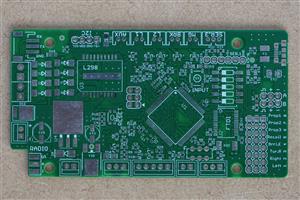

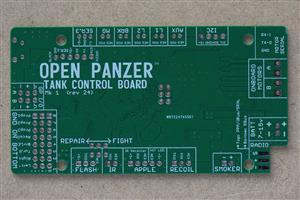

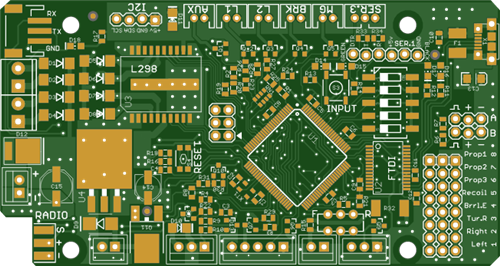

OpenPanzer RC Tank Control Board

Open Panzer is a community project to develop open-source products for the RC tank market.

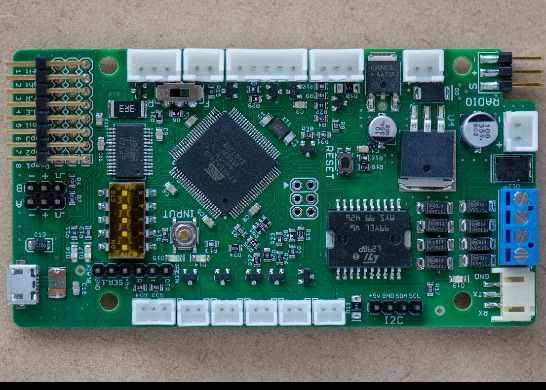

The TCB (tank control board) is a competent circuit board designed specifically for RC model tanks, but also suitable for halftracks, cars, or even battleships. The hardware is based on an ATmega 2560 processor, and the firmware consists of an Arduino sketch as well as various C++ libraries. The repository you are in now contains the TCB source code.

OP Config is a desktop application used to configure the many options on the TCB and to simplify flashing new firmware to the TCB. It was written in C++ using the open source application development software called "Qt". It has its own firmware repository

You can find more information regarding Open Panzer RC on the OPEN PANZER Wiki, with respect to LukeZ as the creator of the project

Code

Flashing Bootloader to Blank ATmega2560

https://openpanzer.org/forum/index.php?topic=290.0

Firmware for the Open Panzer TCB (OP Config)

https://github.com/OpenPanzerProject/TCB

Download Gerbers Download BOM(Bill of materials)

Sep 08,2025

595 views

OpenPanzer RC Tank Control Board

OpenPanzer RC TCB – circuit board designed to control RC model tanks, but also suitable for halftracks, cars, other RC models, and robotics.
