STM32H743ZIT6 High-Performance Flight Computer & IMU Development Board

Project Overview

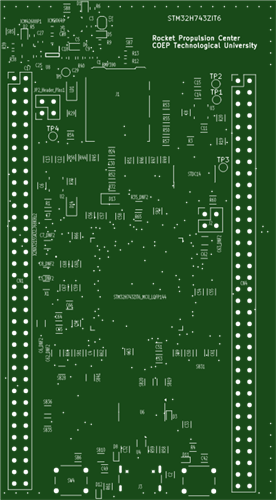

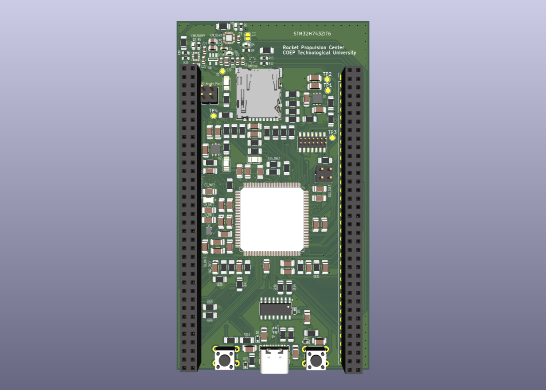

This project is a compact, high-performance embedded development and flight computer board built around the STM32H743ZIT6- one of ST Microelectronics' most powerful ARM Cortex-M7 microcontrollers running at up to 480 MHz with 1MB RAM and 2MB Flash. The board is inspired by the ST NUCLEO-H743ZI reference design (document MB1364) and extends it with onboard aerospace-grade inertial sensors, barometric altitude sensing, USB-C connectivity, SD-Card For Data Storage, and a rich set of I/O expansion headers- making it ideal for rocketry flight computers, drone autopilots, robotics, and high-speed data acquisition systems.

Need To Build This

Off-the-shelf development boards like the NUCLEO-H743ZI are great for prototyping but lack integrated sensors needed for real-world flight applications. As a member of a rocketry team, We needed a single board that could Handle high-speed 6-axis + 6-axis IMU fusion for attitude estimation, Log barometric altitude and pressure in real time, Communicate via USB-C without needing an FTDI dongle, Fit within the tight form factor of a rocket avionics bay (60mm wide), Be hand-solderable with 1206 passive components for field repair. Instead of stacking shields and wiring sensors on a breadboard, I designed everything onto one 4-layer PCB- clean, compact, and flight-ready.

Key Features

• STM32H743ZIT6(480 MHz Cortex-M7)
• Dual IMU (ICM-20649 + ICM-42688-P) for redundant sensor fusion
• BMP390 barometric altitude sensor
• Native USB-C with CH340C bridge + ESD protection
• In-built MicroSD slot for high-speed flight data logging
• Dual 3.3V LDO power rails with clean analog supply
• 25 MHz + 32.768 kHz dual crystal clocking
• 4-layer stackup for clean power planes and signal integrity
• Hand-solderable 1206 passive components
• SWD debug header
• 72× expansion I/O via dual 36×2 headers

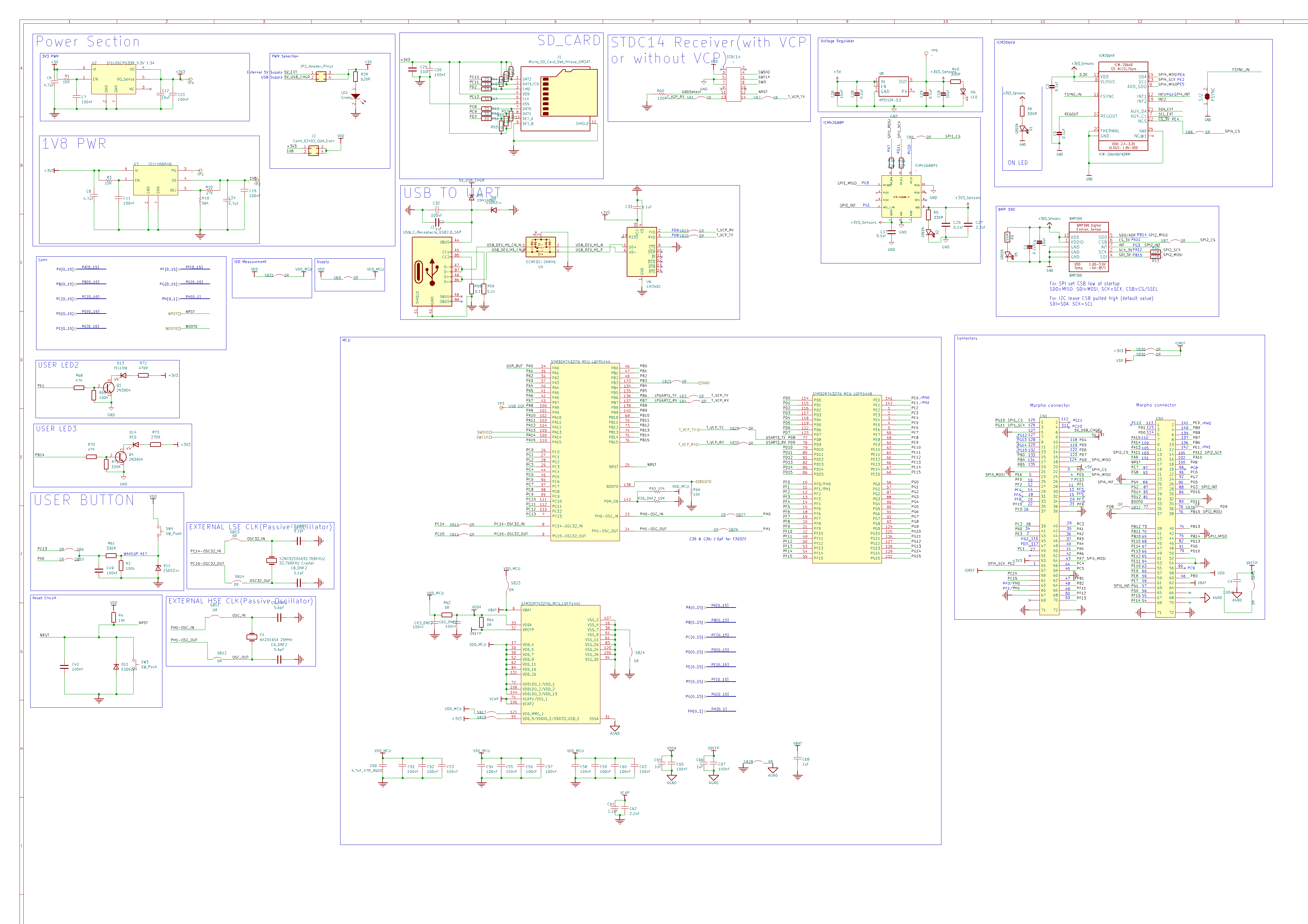

System Architecture

Core Microcontroller - STM32H743ZIT6 (LQFP-144)

• Cortex-M7 core 480 MHz with FPU & DSP instructions
• Dual AXI/AHB buses for parallel sensor + USB operation
• Hardware SPI, I2C, UART, USB FS/HS, SDMMC, and more
• 144 GPIO pins routed to dual 36×2 pin expansion headers

BMP390

• Pressure measurement 300–1250 hPa
• Altitude resolution: ±0.05m
• Connected via SPI for high-speed altitude logging during ascent/descent

ICM-20649 - High-G Sensor

• ±30g accelerometer, ±4000°/s gyroscope

ICM-42688-P - Precision Sensor

• ±16g, ultra-low noise (70μg/√Hz)
• Run simultaneously on separate SPI buses
• Cross-validate each other
• No data loss across any flight phase
• One handles shock, one handles precision

 USB-C Interface — CH340C + ECMF02 ESD Protection

• USB-C receptacle for programming and serial communication
• CH340C USB-to-UART bridge for easy PC connectivity- no external programmer needed
• Integrated USB ESD protection filter for robustness
• 33Ω series resistors on USB D+/D− lines for USB 2.0 compliance
• 5.1kΩ CC resistors for USB-C power negotiation
• Solder bridge SB array for flexible signal routing

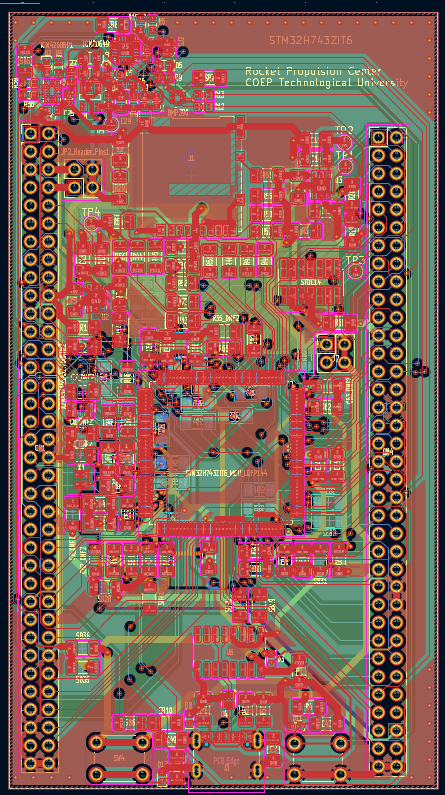

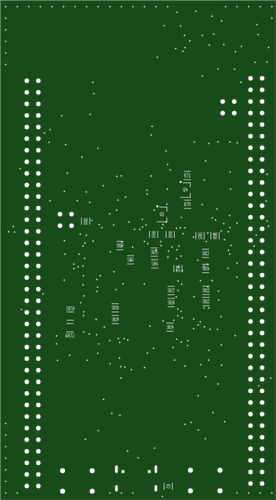

PCB Design Considerations

Stackup

• 4-layer: Signal / GND / PWR / Signal
• Solid GND plane under critical signals
• Split analog and digital power plane

Signal Integrity

• USB D+/D− length matched using Differential signal routing
• No 90° bends, short crystal traces

Power Integrity

• 100nF + 10µF decoupling at every VDD pin

Thermal Management & Placement

• Decoupling caps next to IC pins

EMI / ESD

• ESD protection on USB
• GND stitching vias on board perimeter
• No floating copper pours
• Minimum trace width 0.15mm
• DNF components clearly marked

Testability

• Test points on critical nets
• SWD + UART headers accessible

Conclusion and Future Scope

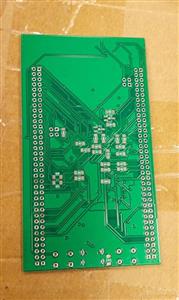

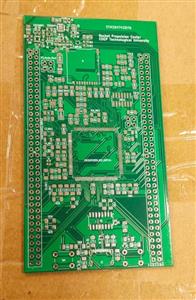

This project demonstrates a compact 4-layer flight computer built around the STM32H743ZIT6, combining dual IMU sensor fusion, barometric altitude sensing via BMP 390, USB-C connectivity, and MicroSD logging. The dual ICM-20649 and ICM-42688-P architecture ensures uninterrupted data capture across all flight phases, from 30g launch shock to precise navigation, making it a reliable foundation for Aerospace Applications.

Future development will focus on adding GPS and LoRa telemetry.
