Components

	2.0-2*10P BOOMELE(Boom Precision Elec)	x 1
	HC-USB3.0-L168-WP Hong Cheng	x 2
	HC11051-D4 FOXCONN	x 1
	PJ-3062-HD-R XKB Connection	x 1
	PJ-3062-HD-G XKB Connection(中国星坤)	x 1

Description

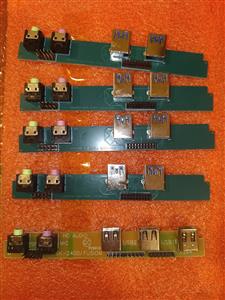

NSK-2400 Front I/O Upgrade to USB3.0

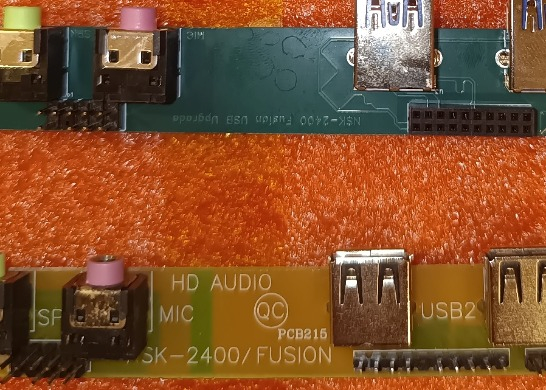

Upgrade for older Antec Fusion Cases, Fusion Remote and NSK-2400 cases to USB 3.0 I/O

Requirements: USB 3.0 Header extension, Notch/Key is towards the USB, the front of the case.

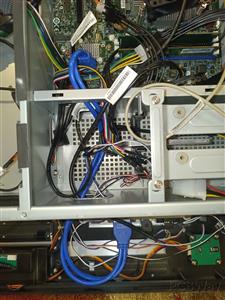

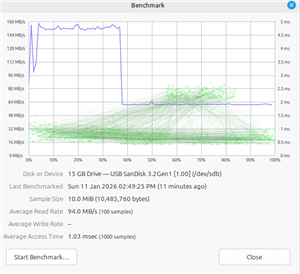

Fully Tested and working on my own machine. Gives USB 3.0 speeds properly as per screenshot.

Probably can be made better, as it's my first ever PCB I created in 4 weeks.

Schematic and Layout

Schematic

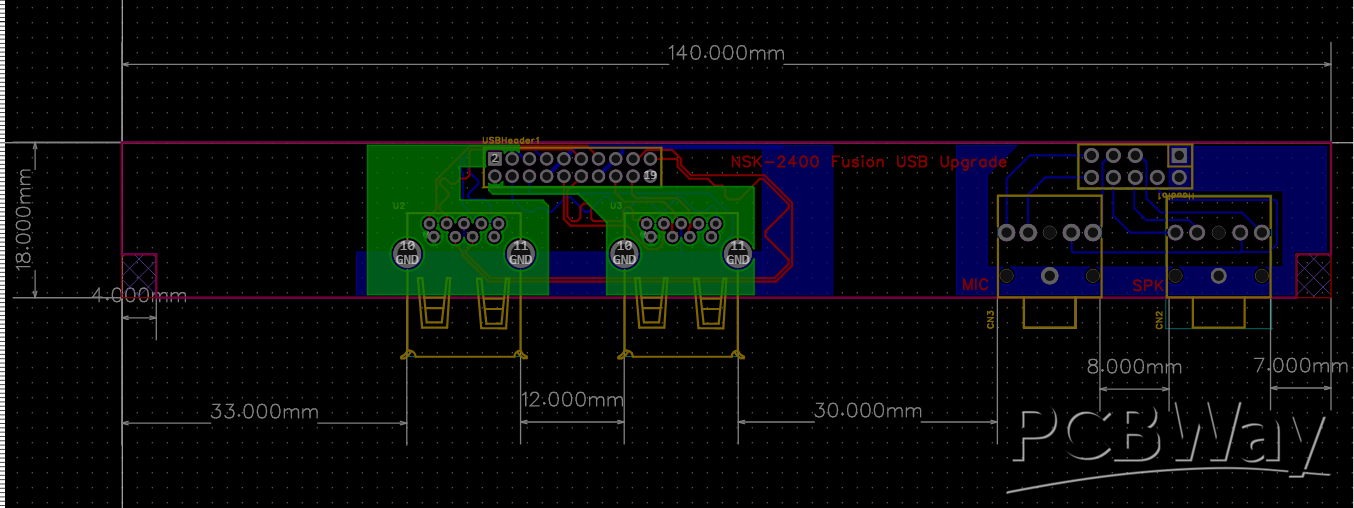

PCB Layout

PCB Layout.PNG

3D Render

3D Render.PNG

Download Gerbers Download BOM(Bill of materials)
