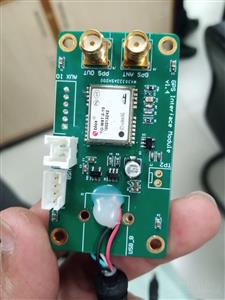

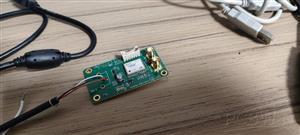

The NEO-M8 Custom GNSS Interface Module v1.5 is a high-reliability positioning solution engineered for professional and industrial applications. While many GNSS modules sacrifice signal quality for size, this design prioritizes RF path integrity and timing precision, making it ideal for UAVs, synchronized clock systems, and rugged telecommunications hardware.

Key Engineering Features:

• Advanced RF Design: Engineered with impedance-controlled traces and high-quality SMA connectors to ensure maximum carrier-to-noise ratios (C/N0) and minimal signal loss for both GPS and GLONASS constellations.
• Precision Timing (PPS): Features a dedicated Pulse Per Second (PPS) output path, synchronized through a high-speed buffer IC (NC7SZ125M5X). This ensures a clean, low-jitter timing signal for external hardware synchronization.
• Industrial Connectivity: Equipped with a robust USB interface for power/data and a multi-pin AUX connector for secondary I/O, providing versatile integration options.
• Power & Signal Protection: * Regulation: Uses the AP7331-33WG-7 ultra-low-noise LDO to provide a rock-solid 3.3V rail.
• EMI/ESD: Integrated USBLC6-2SC6Y ESD protection and strategically placed ferrite beads to shield sensitive GNSS silicon from power surges and EMI.

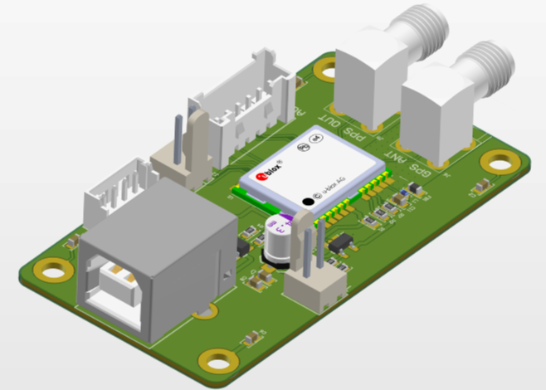

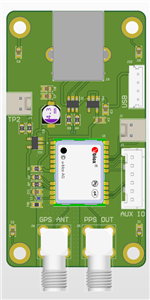

• Mechanical Reliability: The PCB layout is fully optimized in a compact form factor, validated with 3D mechanical models to ensure perfect fitment in custom enclosures.

Technical Specifications Table:

Feature > Specification

GNSS Engine > u-blox NEO-M8 Series

Input Voltage > 5V (USB) or External 5V

Output Logic > 3.3V CMOS

Interface > USB Type B / UART / AUX I/O

Timing Accuracy > PPS Buffered Output (Sub-microsecond)

ProtectionESD > (USBLC6) + EMI Ferrite Filtering
