Ledboy Light

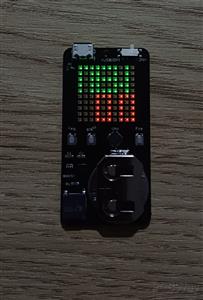

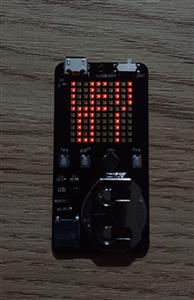

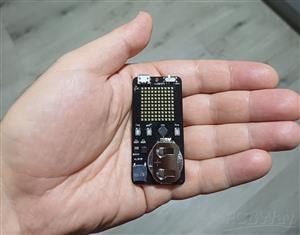

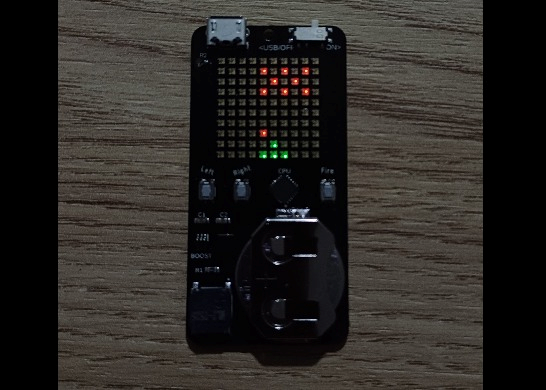

Absolutely tiny LED console with a nice version of Space Invaders, featuring many levels, enemy patterns, and it keeps score.
To flash, you need a USB to UPDI adapter like:
Or you can use any UPDI capable programmer and hack a micro USB cable, the UPDI signal correspond to D-.

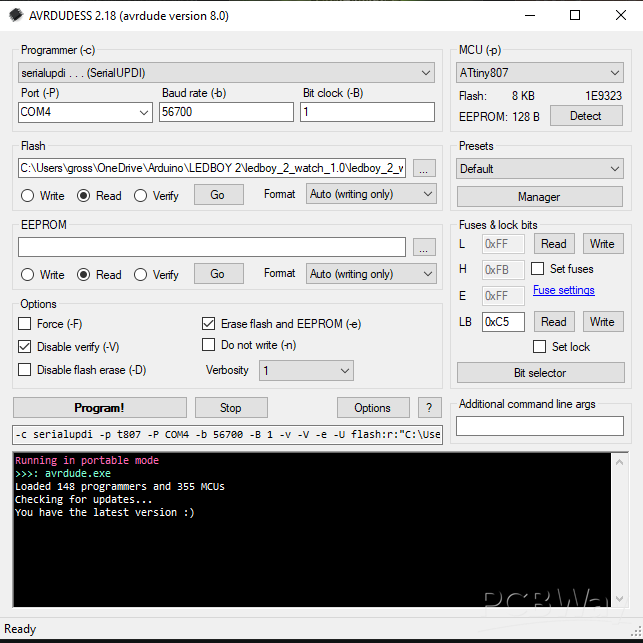

And to program:
GitHub - ZakKemble/AVRDUDESS: A GUI for AVRDUDE
2026 update:

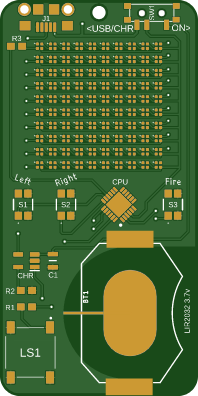

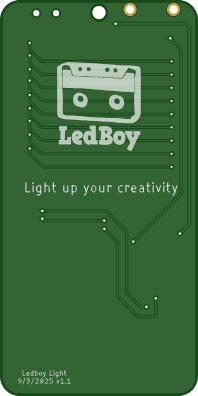

you can change the attiny 807 for a attiny 1617, it is pin and package compatible so no changes needed in gerber just change the BOM item, it has 16kb of flash, so you can use the latest firmware v1.7 (it has 4 games including: spaceinvaders, tetris, flappyled and snake. If you have the attiny 807 use the v1.5.
with 8k there is only room for one game.
