Red led 0603Litekeys
|
x 30 | |
|
|
ESP32-C3 Super MiniExpressif
|
x 1 |
|
Fusion 360Autodesk
|
PCB Led display wifi clock

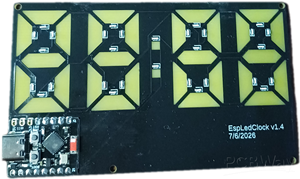

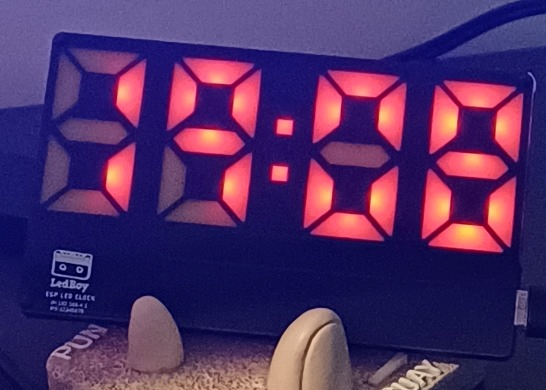

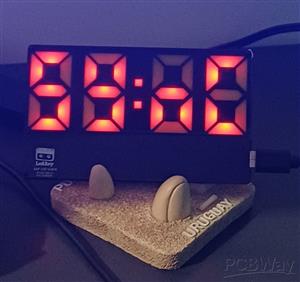

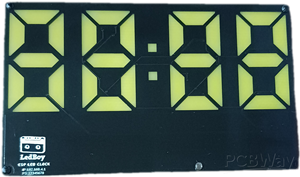

A led display taking advantage of the transparency of PCBs FR4 boards, charliplexing a couple of leds with a ESP32 C3, it display time and temperature, auto time sync based on IP.
It connects to NTP and get time and whether automatically you can also configure brightness and input the time manually if you desire.
All is configured using the ESP32 built in wifi.
Instructions and project files:
PCB Led display wifi clock
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
Please review the designer's notes (e.g., PCB thickness) and select the appropriate options.
PCBWay is not responsible
for issues caused by unsuitable parameter selections.
For more important ordering information, please refer to
