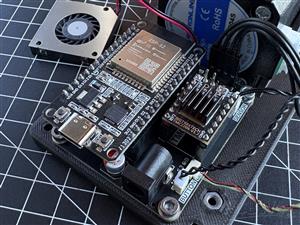

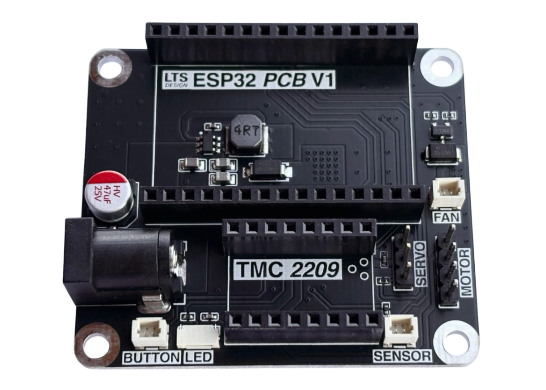

LTS Respooler Driver Board V1.1
Updated to V1.1
The LTS Respooler is a compact and slightly over-engineered filament Respooler optimized for Bambu Lab spools. It integrates a filament runout sensor and wireless app-connectivity for ease of use.
The board has 2 layers.
!! Important: If the motor is just vibrating and not spinning at all, please swap the inner two wires of the motor cable on the side of the PCB. Some motors have different internal wiring.
LTS Respooler Driver Board V1.1
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
Please review the designer's notes (e.g., PCB thickness) and select the appropriate options.
