Description

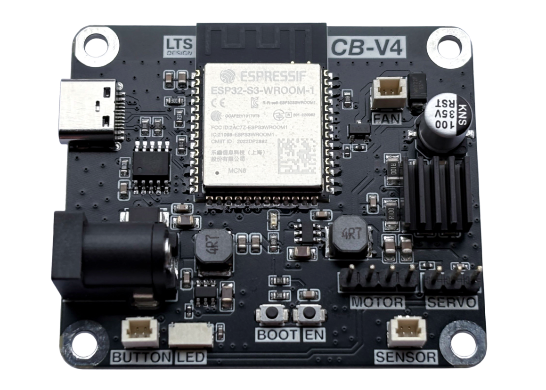

LTS Respooler Control Board
The LTS Respooler is a compact and slightly over-engineered filament Respooler optimized for Bambu Lab spools. It integrates a filament runout sensor and wireless app-connectivity for ease of use.
!! Important: If the motor is just vibrating and not spinning at all, please swap the inner two wires of the motor cable on the side of the PCB. Some motors have different internal wiring.
The board has 4 layers.
Code
GitHub Code to flash
https://github.com/LukasT03/LTS-Respooler/blob/main/Firmware/(.txt)%20Control%20Board%20Code
Dec 05,2025
1,557 views
LTS Respooler Control Board
Used to control all the electronic parts of the LTS Respooler.
1557
6
0
Published: Dec 05,2025
Standard PCB
Download Gerber file 112
BOM(Bill of materials)
Centroid file
PCBWay Donate 10% cost To Author
Only PCB
PCB+Assembly
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-MIT
License.
