JeanPay Device
MDB ESP32 Cashless Device
Multi-Drop Bus (MDB) Vending Machine Telemetry and Payment Module
This is an open source project dedicated to implementing the MDB (Multi-Drop Bus) protocol for cashless vending machines, using ESP32 as the main platform and KiCad for PCB design. The MDB protocol is widely used in vending machines for communication between devices, enabling integration with cashless payment systems.

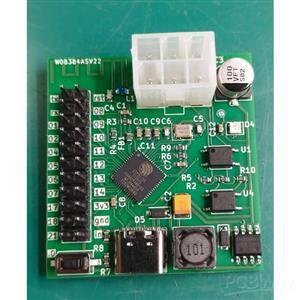

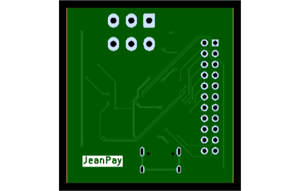

JeanPay Device
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
Please review the designer's notes (e.g., PCB thickness) and select the appropriate options.
