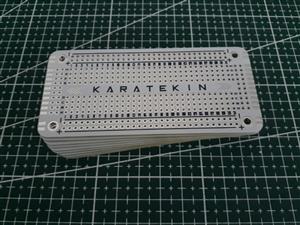

Half-Size Breadboard V2 - UPDATED! (100x45MM) - Karatekin
Half-Size Breadboard (100x45MM) - Karatekin
This breadboard will help you in your new projects.
It offers different usage areas with its improved features.

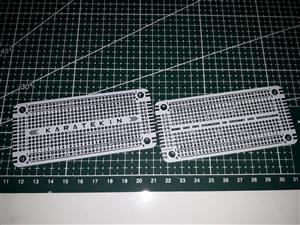

Breadboard is 45x100 mm in size.
Board has four M3 fixing holes.
You can also easily solder cables to the pads on the side of the breadboad.

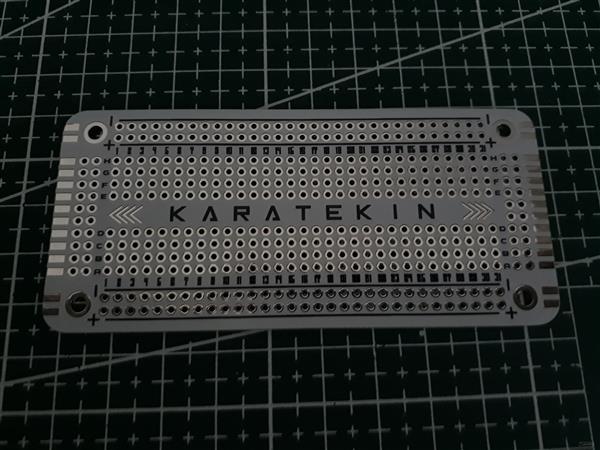

FRONT SIDE

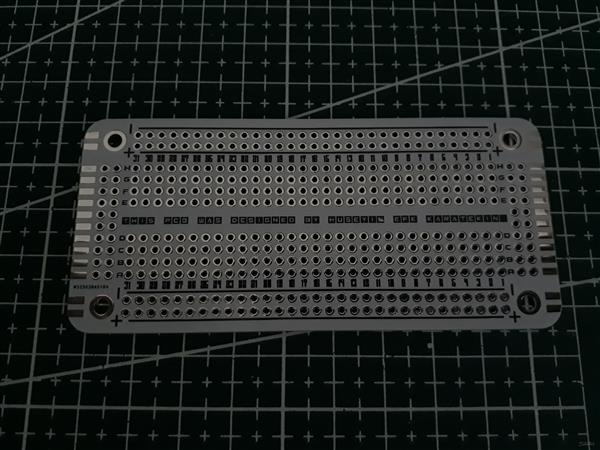

BACK SIDE
UPDATES:
Wider solder pads and tracks
Jul 08,2022
