BEFORE YOU ORDER

This PCB SHOULD BE ORDERED AS 1.0mm NOT 1.6mm

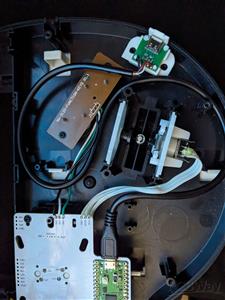

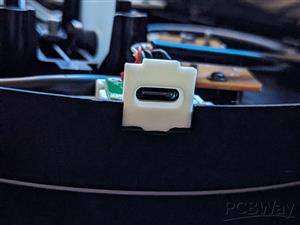

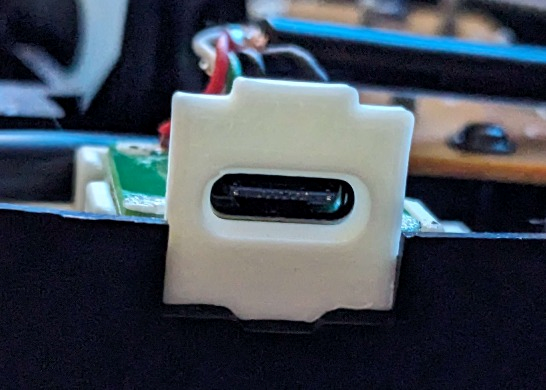

All credits to @lexd0g_565045 on Printables for designing this USB-C holder for the RP2040-Tiny

All "PCBWAY shared project commission" (10% of every order) will go directly to @lexd0g_565045 Via their ko-fi when made available :)

https://www.printables.com/model/1001127-rp2040-tiny-usb-c-board-mount-for-guitar-hero-les

https://www.printables.com/@lexd0g_565045

This PCB is NOT MEANT FOR PEOPLE NEW TO SOLDERING.

YOU SHOULD ORDER THIS PCB ASSEMBLED WITH THE PORT AND RESISTORS PRE SOLDERED.

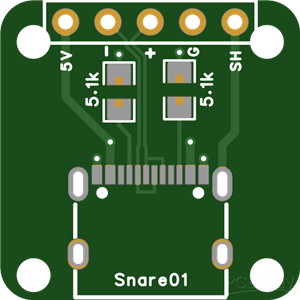

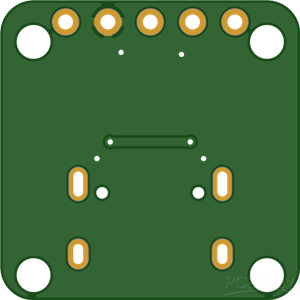

This PCB replaces the RP2040-Tiny Originally needed and adds a USB-C female Port.

Materials You NEED

USB Breakout Pigtail Wire

If hand soldering you need 1 USB C female port

2x 5.1K ohm 0805 Resistors

I offer 0 Support for this if you hand solder it. USB ports are super difficult to hand solder

You should order this WITH ASSEMBLY

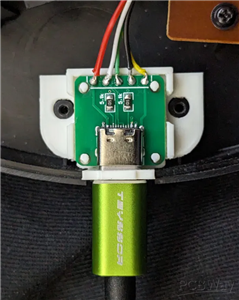

I've added two STL's edited from @lexd0g_565045 given .step files, I've had to slightly modify the file they designed to fit the PCB
