Guitar Hero Clone Hero Mechanical Strum PCB

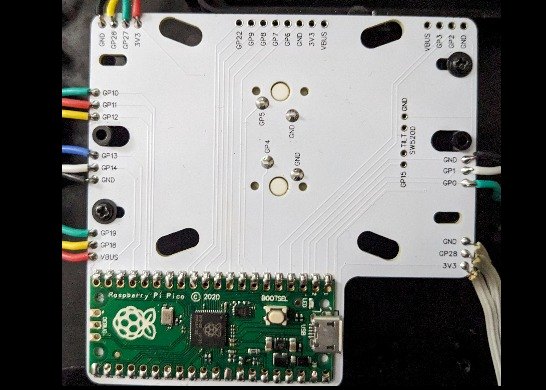

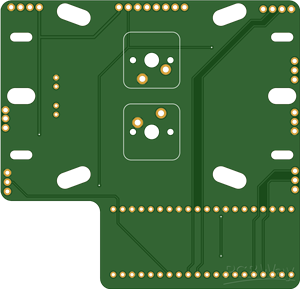

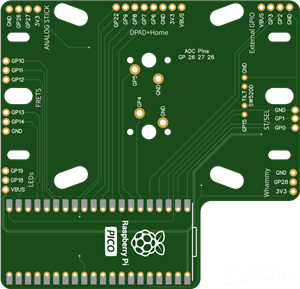

Guitar Hero STRUM PCB
YOU WILL NEED
- Pi PICO With header pins
(Some Pico Clones don't share the same pinout) -DOUBLE CHECK
- Kailh Box Switches
- Appropriate USB CABLE
- 24-26 AWG Stranded Wire
- Soldering capabilities
What guitars will this fit?
- Kramer
- SG
- Xplorer
- LP
- WT
- GH5
How do I program the Pi Pico?
Use Sanjay's "Santroller" software to configure
https://santroller.tangentmc.net/
Some guitars need case modifications to close where the PCB sits
You can trim off the plastic pegs where it interferes with some wire cutters
case pegs may interfere with the area where you solder the frets and where the USB cable comes out so don't force it down on first fit
For the Kramer guitar the peg where the warranty sticker site needs to be trimmed on both halves of the guitar clamshell
Little to no support is offered, this PCB has been tested on Kramer, WT, GH5, LP and XP
You can message me on Discord @ Snare01 but don't expect much. I'm just a hobbyist
Guitar Hero Clone Hero Mechanical Strum PCB
*PCBWay community is a shared platform and we are not responsible for any design issues.
