Welcome back to another instalment of GachaSP!- BETA

This is the latest version with some refinements, let's get started:

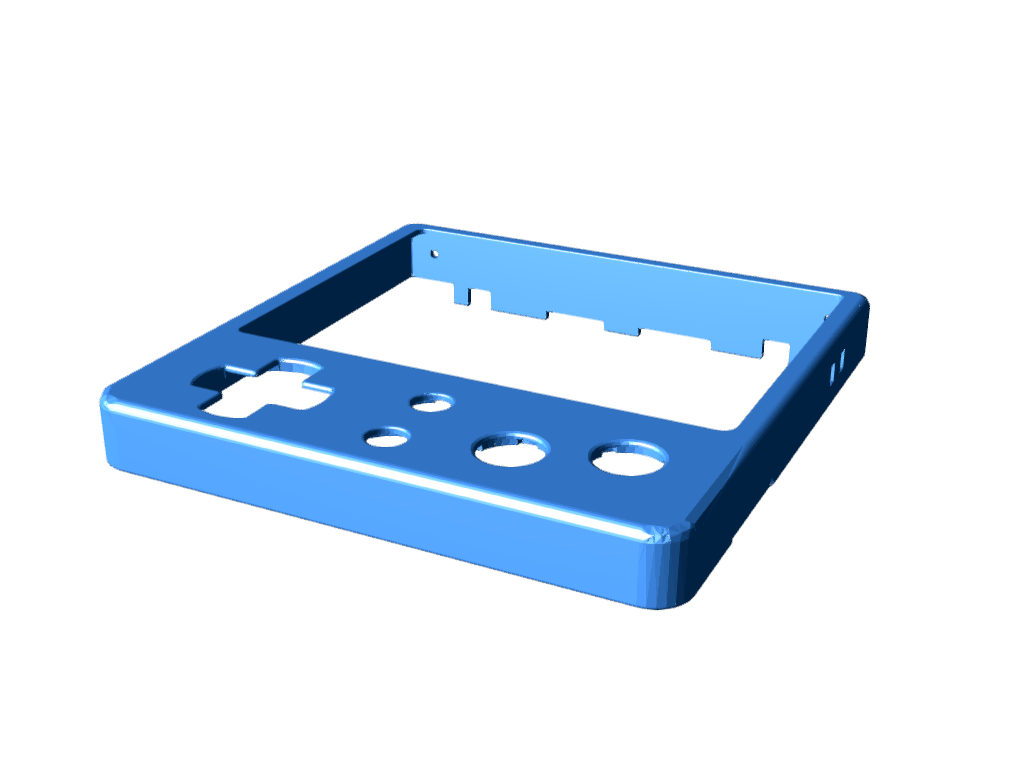

Top shell:

• Screw posts reinforced
• Button shaping improved
• Wall Strength Improved
• Two additional screw posts for use with the new and improved PCB - coming soon! - that increases the reliability of button presses and the comfort when playing - but will also work with the older one just fine
• Screw holes at the top of the console have been moved - this top shell is not compatible with previous mid frames
• Sides of console have been adjusted to remove a small gap which appeared with some aftermarket shells

Mid Frame:

• Now compatible with FunnyPlaying M2 screens as well as most other third party screens - I use foam padding to fill any void space and keep the screens snug
• new cut out allows for OEM Speaker to be installed behind the screen, plays much louder than the third party options, but if you are struggling to fit it, the space will also allow for a very loud switch speaker which is easier to install and secure with foam or tape
• screw posts reinforced, less prone to shearing
• structural support given across the plate wherever possible to prevent warping
• additional screw post added which lines up inside battery bay

I've included a threading diagram for the top shell so this can be manufacture in any material, printed or CNC - I highly recommend that the MID frame is printed rather than CNC to save costs, and I also recommend using resin (SLA) for this option.

As always, I am not liable for any damage you cause to your device in attempting this!
