GachaSP (Final Revision)
The Smallest Gameboy Advance SP in the world!
Use of these files is restricted under creative-commons, No derivatives. You may not reproduce or redistribute these files for profit, share without credit or print with the intention of selling them unless explicitly agreed by the author.
This version features significant improvements and will be the final update to the standard GachaSP:
- NEW: Authorised and approved builders, these are the only makers who have license to produce the shells and fully built consoles with this design:
@BOYSMODS (Instagram or www.boysmods.com/product/gacha-sp/)
@NorthBestElectronics(Instagram or www.etsy.com/shop/NorthBestElectronics )
Alternatively, all versions can be ordered through PCBway (https://www.pcbway.com/project/member/?bmbno=6B37200B-D6EB-43)

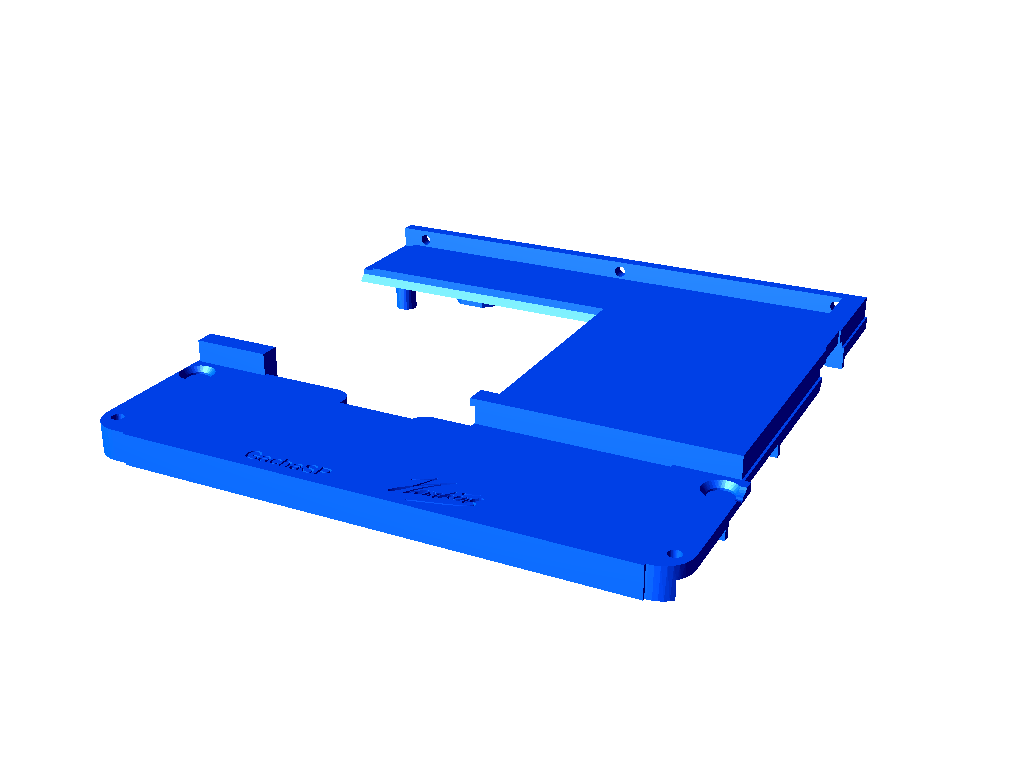

- Improved structure, minor changes make design less prone to warping
- Improved screw post stability
- less likely to have threading issues and to break during build
- Corners rounded more for comfort
- Various general improvements

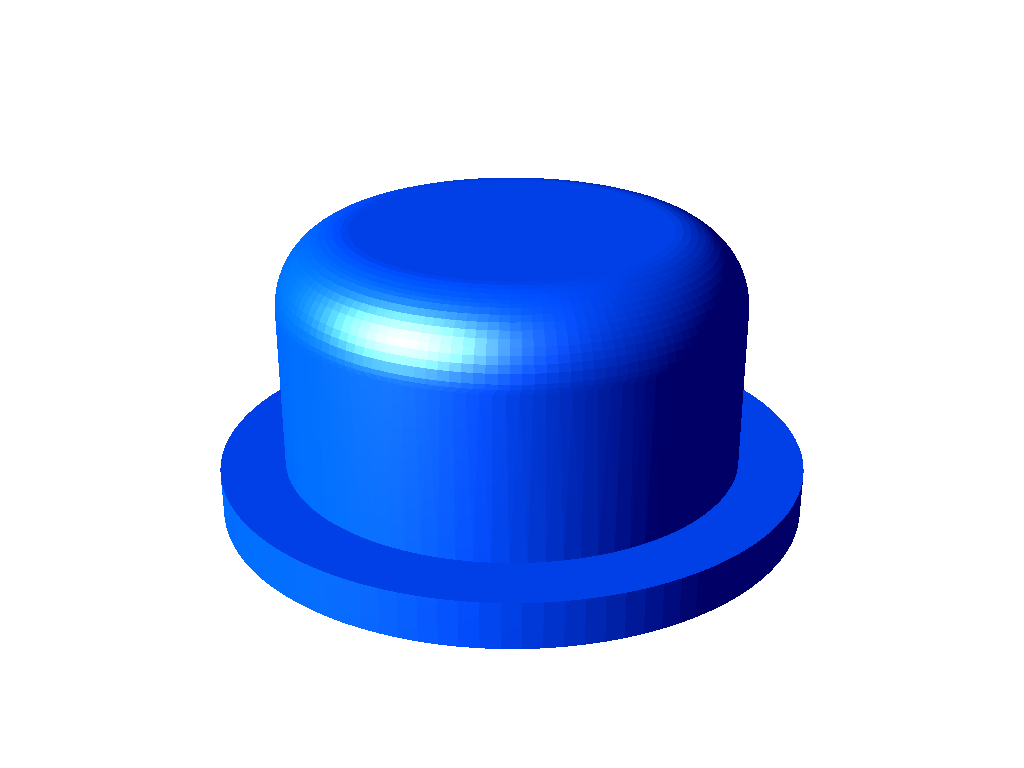

- Included are taller button files for Start and Select which can be used if the stock buttons aren't comfortable in the build due to their reduced height
PCB can be purchased here:
www.pcbway.com/project/shareproject/Custom_button_board_for_GachaSP_fa33171a.html
If you like this and want to support me or my other projects head over to my page to see other designs, or: ko-fi.com/josephtomkins www.linktr.ee/josephtomkins
If you want to support Jonas for his work on the PCB: www.liinks.co/retrogame.evo ko-fi.com/retrogameevo
I receive a small commission on orders placed through BOYSMODS and NorthBestElectronics which serves as a licensing fee. When ordered through PCBway, I receive credit on their page which can be spent on prints for future console development
