Components
|
|
NRF24L01 Module |
x 1 | |
|
|
CC1101 Module |
x 1 | |
|
|
10kΩ Resistor |
x 2 | |
|
|
3 Pin SPDT Switch |
x 1 | |
|
|
2.54 mm 1x18P Single Row Male Header, L=15 mm |
x 1 |
Tools, APP Software Used etc.
|
KiCad 9.0 |
Description
Flipper_Zero_Hat_NRF24_CC1101
This project is a compact 2-in-1 Flipper Zero expansion hat that combines NRF24L01 and CC1101 RF modules on a single PCB, with a physical SPDT switch to toggle between them. It allows a Flipper Zero user to expand RF & 2.4 GHZ capabilities while maintaining portability and pin compatibility.
Jun 06,2025
625 views
Flipper_Zero_Hat_NRF24_CC1101

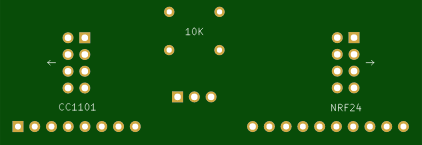

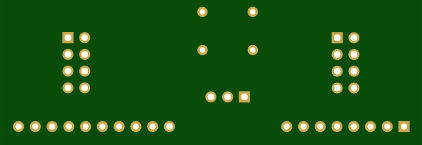

2 Layers PCB 22 x 64 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen
Flipper Zero expansion hat featuring switched power and shared SPI bus for NRF24 and CC1101 modules.
625
1
4
Published: Jun 06,2025
Standard PCB
Download Gerber file 15
PCBWay Donate 10% cost To Author
Only PCB
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
