NRF24 |
x 1 | |
|
|
CC1101 |
x 1 | |
|
|
02X04 2.54mm Header Socket |
x 1 | |
|
|
18 Pin Headers |
x 1 |

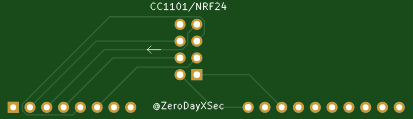

Flipper Zero Hat CC1101/NRF24
This is a custom Flipper Zero hat designed for modular CC1101 or NRF24 modules. It allows easy swapping of modules with a clear orientation rule: insert the module with the antenna facing the left side—inserting it incorrectly may cause malfunction or damage.
The design is compact and clean. Ideal for pen testers who want a streamlined way to extend their Flipper Zero’s capabilities.
Flipper Zero Hat CC1101/NRF24
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
Please review the designer's notes (e.g., PCB thickness) and select the appropriate options.
