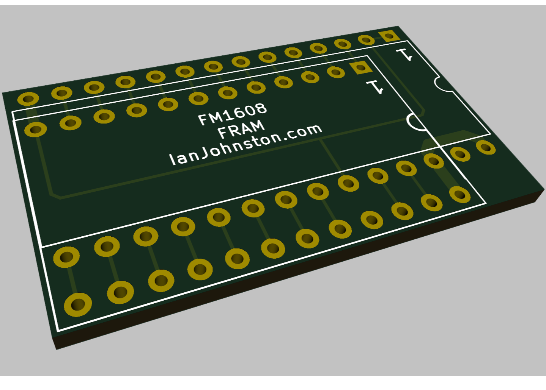

FM1608-3458A-AdaptorV1.0_GERBERS
A FRAM upgrade for a 3458A and other instruments. This uses the FM1608 64Kb FRAM Memory, DIL package.
Refer to my webpage:
https://www.ianjohnston.com/index.php/videos/160-video-blog-132-3458a
And associated YouTube video:
https://youtu.be/cAA1TCvwhuw
Ian.
