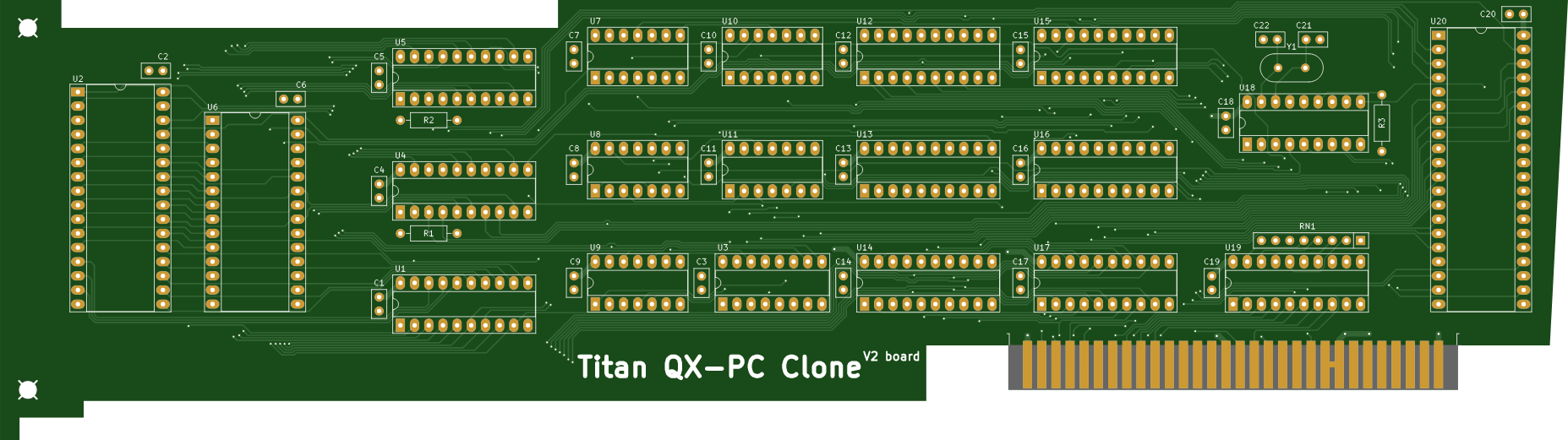

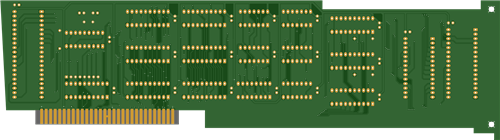

Epson QX-10 Titan Clone
The Titan card allows you to add an 8088 processor to the QX10 to run dos software. It's been reproduced in a way to use fewer parts and be cheaper to build.
Github https://github.com/brijohn/qx10/tree/master/kicad/qx10_titan_clone
Jan 26,2025
277 views
Epson QX-10 Titan Clone
A DIY version of the difficult to find Titan card for the Epson QX10
