Description

Electromechanical Seven Segment Display

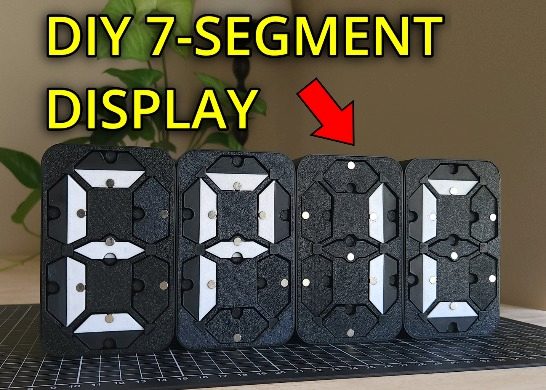

Introducing Flippy! The all-in-one modular 3D printed electromechanical seven-segment display. Through the use of 14 electromagnets, each digit is able to quickly and mechanically display both numbers and letters. This creates a unique and satisfying display.

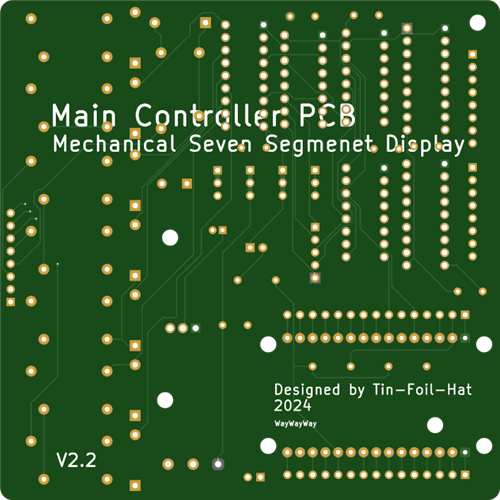

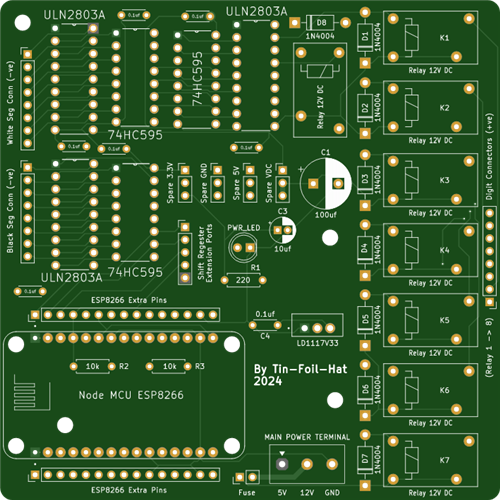

This is the main controller PCB as some people had issues with uploading silk screens so I opted to upload this PCB for them. The digit PCBs still need to be ordered separately and the files can be found on GitHub.

To build your own, check the full build instructions on Instructables.

Or watch the YouTube video below:

This project falls under the CC BY-NC-SA 4.0 Licence

Code

Link to code

https://github.com/Thomas49600/Flippy/tree/main

Schematic and Layout

Link to build instructions

https://www.instructables.com/3D-Printed-Electromechanical-7-Segment-Display/

CAD-Custom parts and enclosures

Link to 3D files

https://makerworld.com/en/models/958069#profileId-966568

Download Gerbers

Jan 24,2025

803 views

Electromechanical Seven Segment Display

The main controller PCB needed for my electromechanical seven-segment display project. Do note you still need to order the digit PCBs aswell

803

Published: Jan 24,2025
