ESP32 S3 Dev board

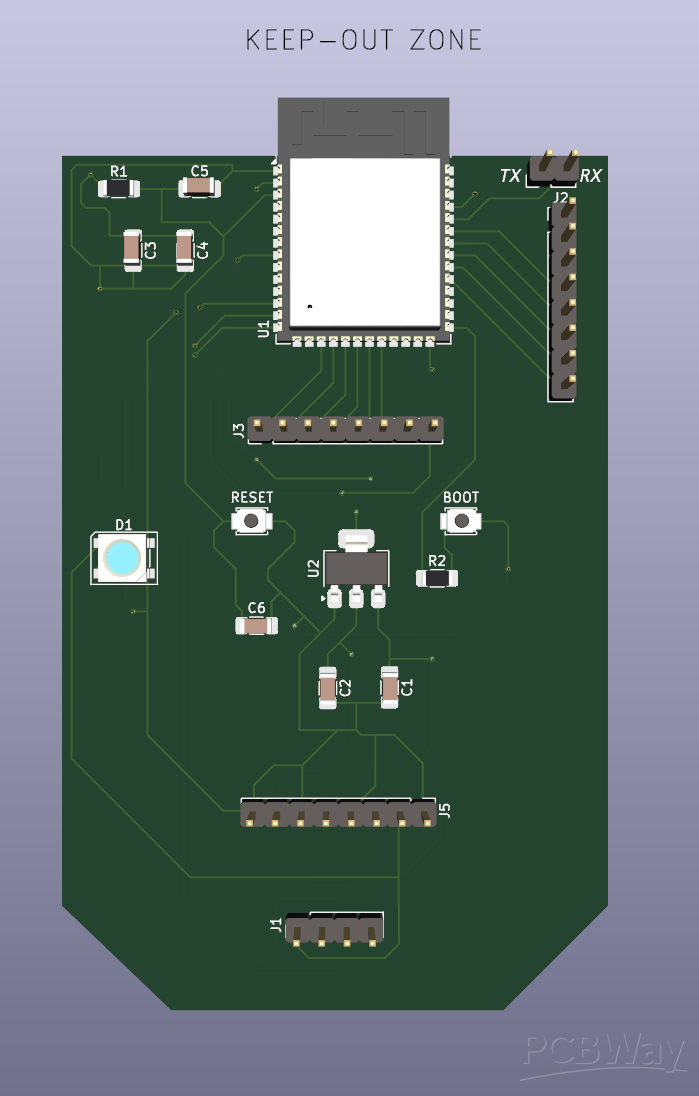

An ESP32 S3 dev board with a Neopixel, an AMS-1117-3.3V regualtor, USB, TX and RX, and various breakout pins for 3.3V, GND, and GPIOs.
This was my first PCB released back in 2024.
Made in kicad 8.

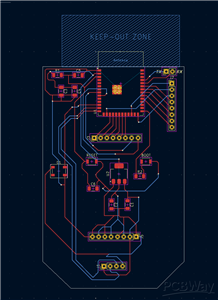

Schematic and Layout
Kicad project files
SCP32files.zip
Jun 15,2026
20 views
ESP32 S3 Dev board
An ESP32 S3 dev board with a neopixel, and TX and RX, my first PCB released back in 2024
