fusion360 |

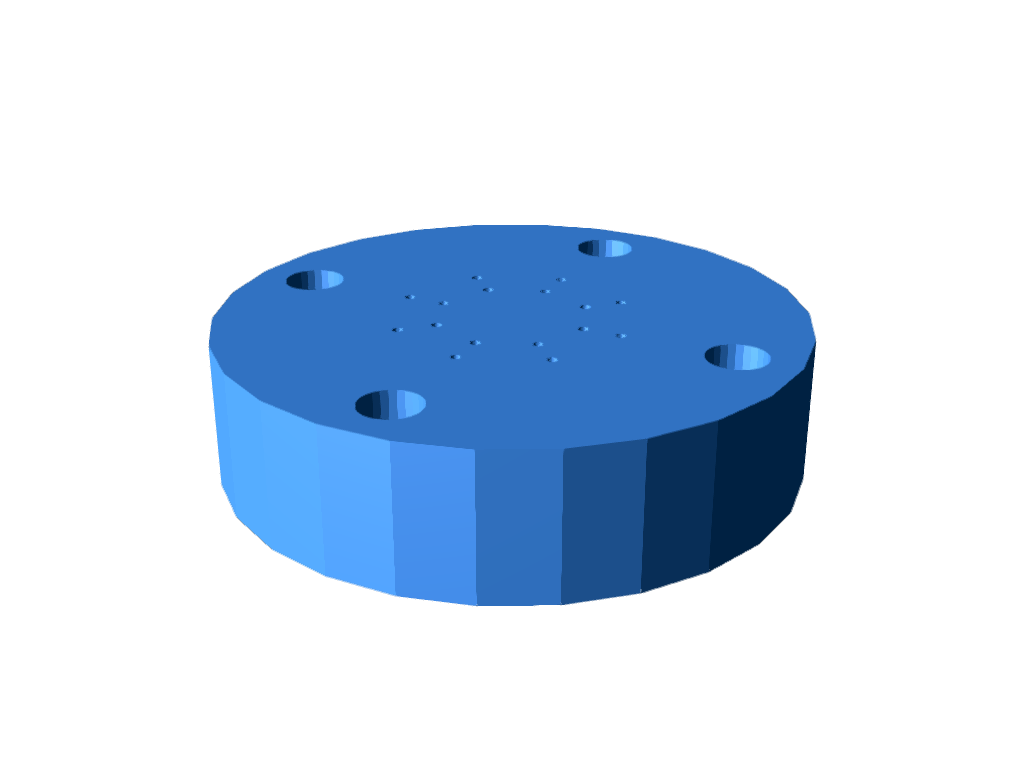

C-1K1W998713A_Injector Plate
I made this for a liquid fueled rocket engine (hobby). Its a shower head design meaning it will mix in the combustion chamber. All thought the shower head design has its limitations, its a good starting point. (and always be safe).
C-1K1W998713A_Injector Plate
