Description

Automatic Switch for Five Antennas, with Both CAT and BCD Decoding

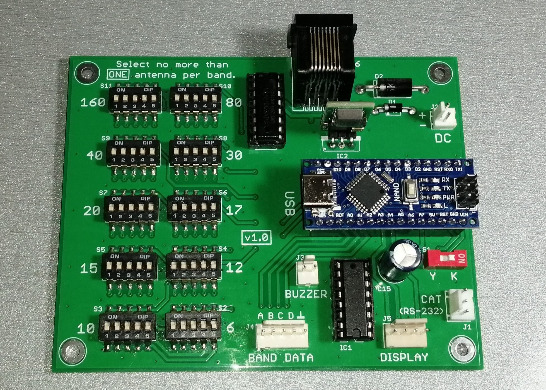

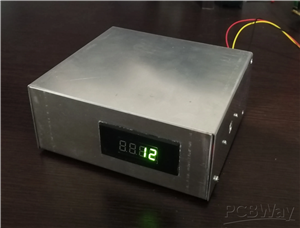

This automatic antenna selector includes both CAT and BCD band decoders in the Arduino sketch, so it should work with many modern HF radios. It features an RS-232/TTL converter, a 7-segment display and a buzzer announcing band changes in Morse code.

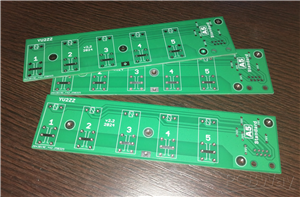

The Gerber files for the relay box PCB are at:

https://www.pcbway.com/project/shareproject/Automatic_Switch_for_Five_Antennas_with_Both_CAT_and_BCD_Decoding_Appendix_dfd68d15.html

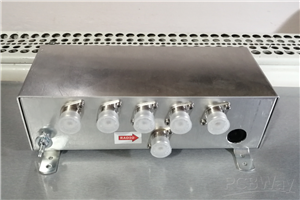

The full article includes the schematics, photos, program, and the instructions for building both the control board and the antenna-switching unit (relay box).

https://yu2zz.com/2026/09/27/automatic-five-antenna-selector-with-both-cat-and-bcd-decoding/

Code

TS-590_CAT_BCD_0.ino

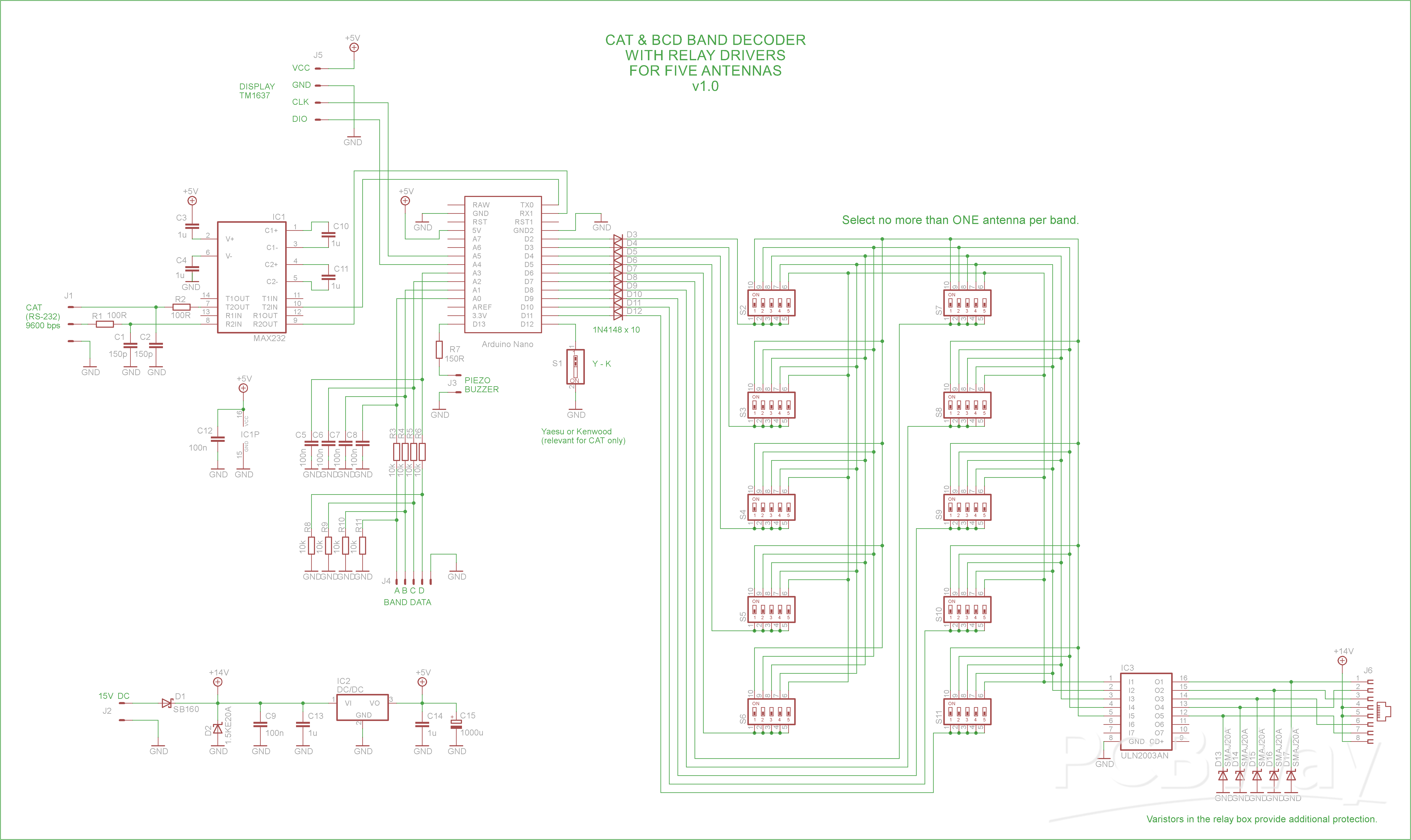

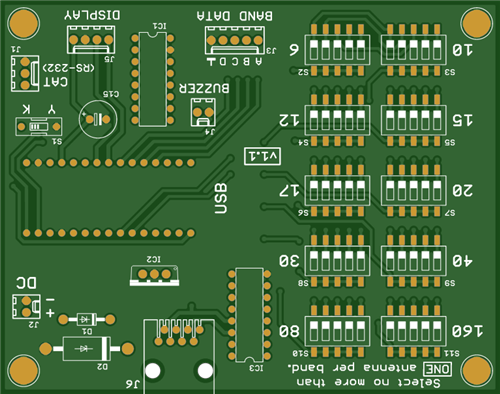

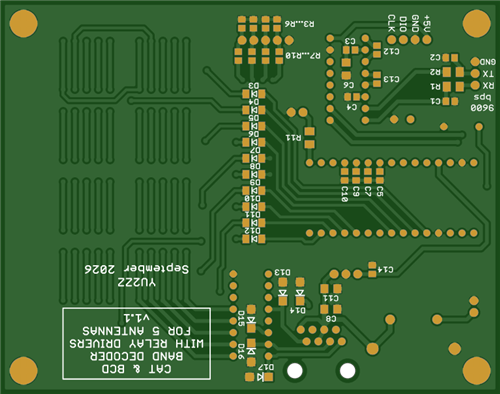

Schematic and Layout


Download Gerbers Download BOM(Bill of materials)

Sep 28,2026

46 views

Automatic Switch for Five Antennas, with Both CAT and BCD Decoding

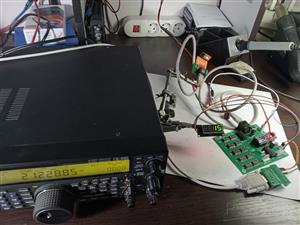

What this device does: As soon as you change the band on your HF radio, the antenna is automatically changed accordingly.
