1N4004GON Semi
|
x 3 | |
|
|
333-2SYGD/S530-E2-L |
x 3 | |
|
|
LTV816D-SUMW(友台半导体)
|
x 3 | |
|
|
PR01000104700JR500 |
x 3 | |
|
|
KF301-5.0-2POn Shore Technology Inc.
|
x 3 |

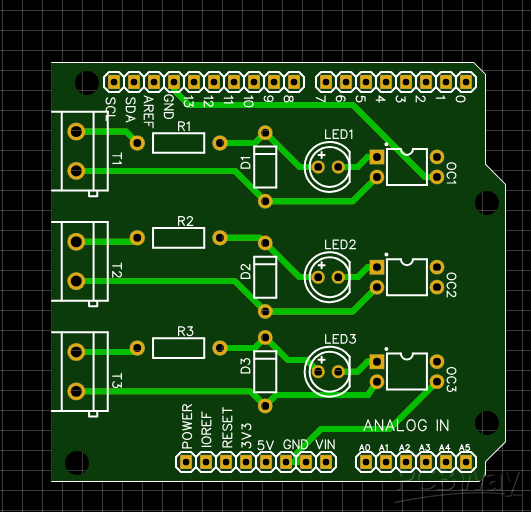

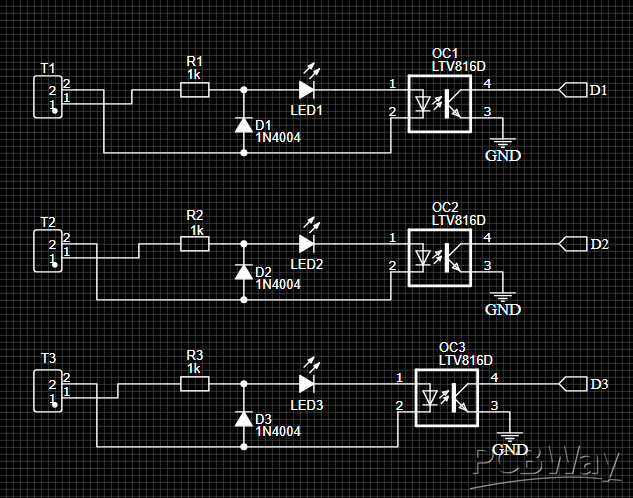

Arduino 24V Digital Input Hat
An Arduino Uno industrial input shield designed to connect 24V industrial automation signals directly to Arduino-based projects. It converts 24VDC digital inputs from PLCs, proximity sensors, limit switches, push buttons, and other industrial sensors into safe Arduino-compatible 5V logic levels. This makes it easy to use an Arduino Uno for industrial monitoring, automation prototyping, machine testing, control panels, data logging, and educational PLC training systems without unsafe wiring or bulky interface circuits.
A simple plug-in solution for bridging industrial 24V digital signals with low-cost Arduino development and rapid prototyping.
Arduino 24V Digital Input Hat
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
Please review the designer's notes (e.g., PCB thickness) and select the appropriate options.
