Amstrad CPC - MX4/IDC to Edge adapter

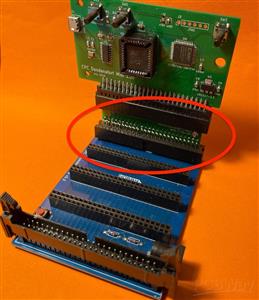

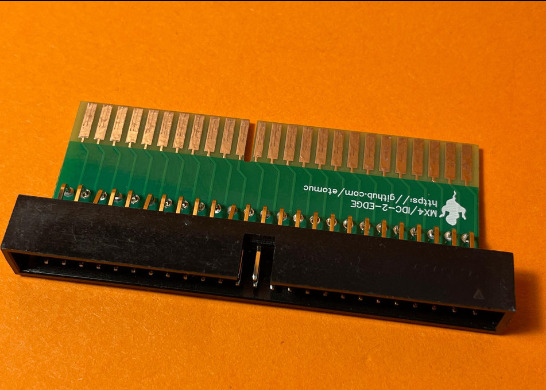

Simple adapter to directly connect Amstrad CPC expansions with edge connector to an MX4 board.
Github project: https://github.com/etomuc/CPC-MX4-IDC-to-Edge-adapter

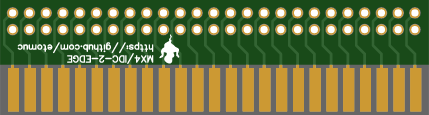

Amstrad CPC - MX4/IDC to Edge adapter
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
Please review the designer's notes (e.g., PCB thickness) and select the appropriate options.
PCBWay is not responsible
for issues caused by unsuitable parameter selections.
For more important ordering information, please refer to
