AY-3-8910(A) or compatible |
x 1 | |
|
|
IC socket 28pin (not on 6128!) |
x 1 | |
|
|
Resistor Array 10k - 9 pins (only needed for AY-3-8910A) |
x 1 | |
|
|
Pin Header 1x14 |
x 2 |
Amstrad CPC - AY-3-8910 adapter

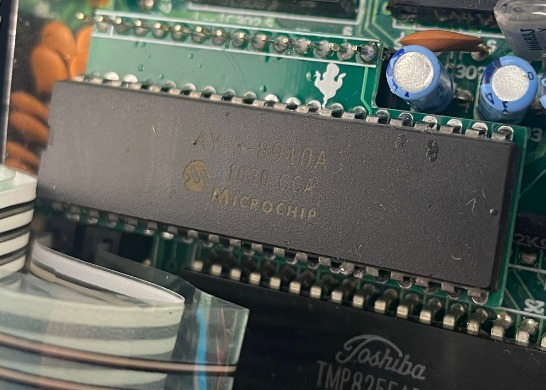

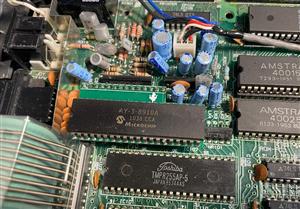

The sound chip AY-3-8912 as used in the Amstrad CPC is hard to find and often quite expensive. With this adapter it is possible to use the MUCH cheaper and easily available AY-3-8210A sound chip in the Amstrad CPC.

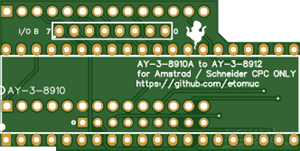

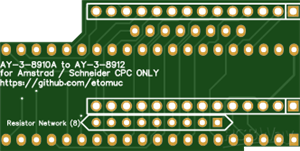

The adapter works in all 3 CPC models (464,664 and 6128). The PCB layout was defined by the limiting space in the CPC 6128 but it will of course perfectly fit into the 464 and 664 too.
Important:
This adapter is ONLY for Amstrad CPC as it is using a slightly different footprint for the sound chip than other computers. It will also not fit into the Amstrad Plus and GX4000 models.
For full details and assembly instructions see Github project here: https://github.com/etomuc/CPC-AY-3-8910-to-8912-adapter
License
This project is released under the CC BY-NC-ND 4.0 license with the following enhancements: The expansion and all resources are free to use for personal use. Selling this PCB alone, as a DIY bundle or (fully) built for a profit is strongly forbidden, however it may be used in commercial repairs as long as the PCB itself won't be charged for (you may charge for the repair and the other materials of course).
