Description

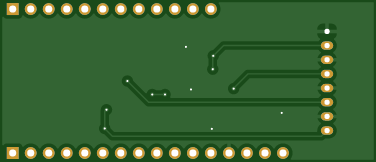

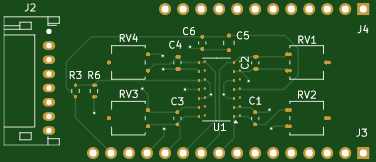

Adafruit feather hat for linear FSR measurement

This project is meant as a hat for any Adafruit feather microcontroller boards. It uses a an amp op circuit to linearize the output change of FSR or pressure sensor resistor from Tekscan. It's meant to work for a portable wearable sensor sole to determine the % of the gait phases. DM me for the arduino the code.

Download Gerbers Download BOM(Bill of materials)

Feb 07,2025

202 views

Adafruit feather hat for linear FSR measurement

Small Adafruit feather hat to linearize and measure outputs from FSR sensors or pressure resistor sensors.
