3-axis automated motorized camera slide/tilt/pan dolly
A DIY 3-axis camera slider for smooth panning and panoramic photography. Utilizing an ESP32-S3 microcontroller, the project combines off-the-shelf components with custom designs, including a robust aluminum structure and silent stepper motors. The firmware allows wireless control and various automated shooting options, with an emphasis on user customization.
Current features implemented:
- Control via Wi-Fi from an external device (i.e. mobile phone, tablet)
- Both Station and Access Point modes are supported
- Built in web interface for settings and control
- Manual jog control
- Automated and repeatable timelapse recording
- Automated and repeatable panoramic photography
- Automated and repeatable 3 axis video recording
- Direct camera control (focus and trigger)
- Saving and restoring all photography/videography settings
- Battery monitoring – visual warning is given to the user when the battery is getting low
- Battery protection – visual warning plus motor operations disabled when the battery reaches critical level
Further info on my blog: https://diy.viktak.com/2024/10/diy-3d-printed-camera-dolly-with-pan-and-tilt-head.html
Oct 10,2024
123 views
3-axis automated motorized camera slide/tilt/pan dolly

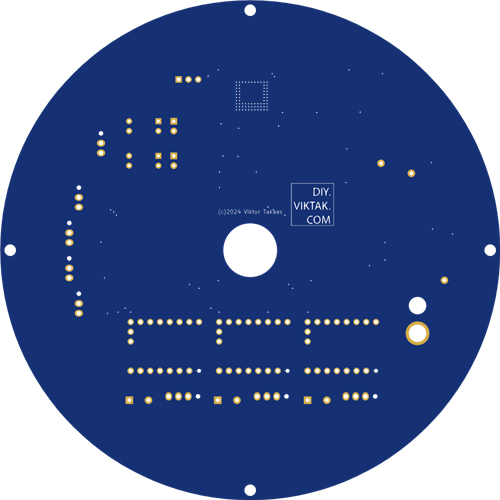

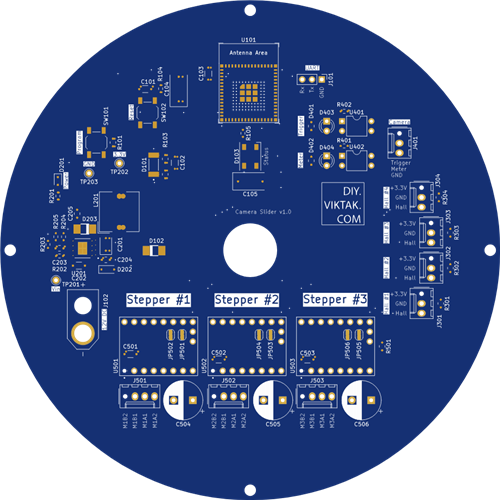

2 Layers PCB 130 x 130 mm FR-4, 1.6 mm, 1, HASL with lead, Blue Solder Mask, White silkscreen
Create repeatable, automated, smooth videos in 3 axis of freedom!
