1-4X 50Watt Solar Switch Board v1.02

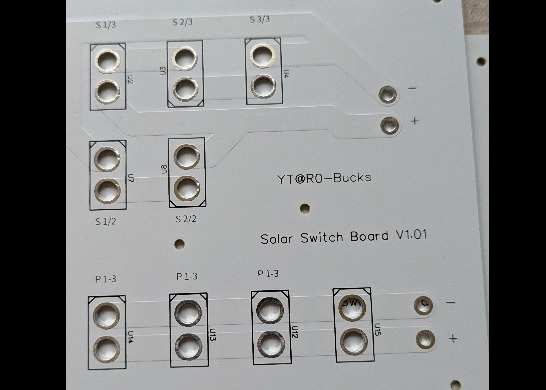

You can plug 1 to 4 solar panels in on the parallel side of the board or on the top there is two options for running in series. 2 in series or 3 in series. I use 2 different controllers for reliability, the series outputs to one controller that steps down and the parallel runs to another controller that steps up.

More about this soon on my YT channel. Find me at YouTube@Ro-Bucks

Download Gerbers

Nov 09,2024

436 views

1-4X 50Watt Solar Switch Board v1.02

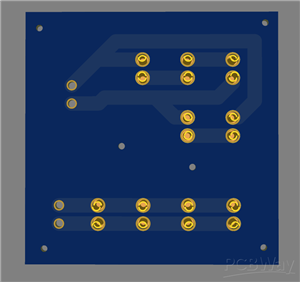

2 Layers PCB 100 x 100 mm FR-4, 1.6 mm, 1, HASL with lead, White Solder Mask, Black silkscreen

1 to 4 in parallel or 2 to 3 in series.

436

Published: Nov 09,2024

Standard PCB

Download Gerber file 3

PCBWay Donate 10% cost To Author

File Last Updated: 2024/12/21 (GMT+8)
