stairs timer 12v

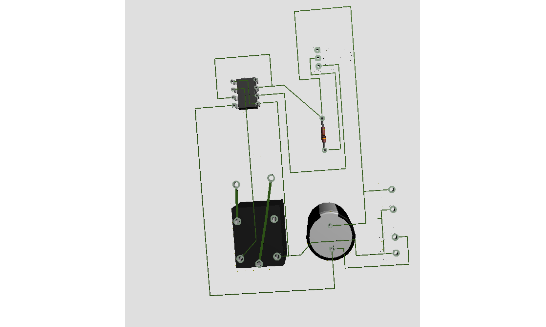

This is a simple and useful delay timer circuit based on the popular NE555 IC and a 12V relay. It can be used for switching devices after a fixed delay, perfect for home automation, LED control, or power supply protection. The project is beginner-friendly, easy to build, and ideal for DIY electronics enthusiasts. The PCB is compact and designed with through-hole components for easy soldering.
CAD-Custom parts and enclosures
New Project.DXF
Jun 23,2025
198 views
stairs timer 12v
A DIY tool that works as a timer when you press a single button. This helps save electricity on stairs, and it can be used for other things
