rcfw Arduino Nano shield

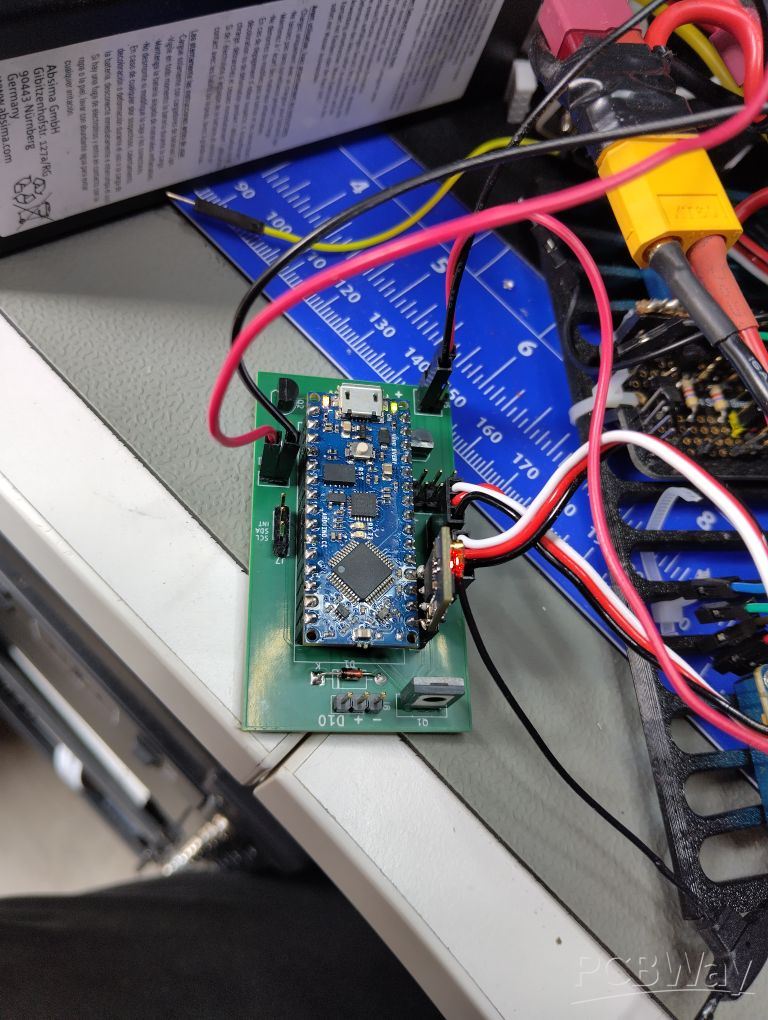

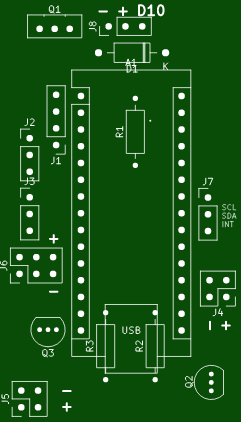

This is a companion shield to my rcfw firmware (see link).
It can take one Arduino Nano or Every (or a compatible clone), two ESCs, one servo, one ELRS receiver (with optional power control via Arduino), two sets of two LEDs (via transistor) and I2C. Power from the second ESC is broken out to a header, allowing supplying power to three other devices. To use this as a second servo manually solder a bridge to VCC of the other ESC.
Models this has been tested with include RC Benchy, Arctic Tinyrider snow mobile and my NoTankS mod. For a full description visit the firmware repository.
