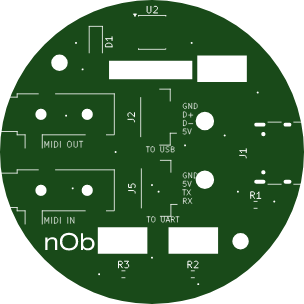

nOb TRS and USB-C MIDI adapter

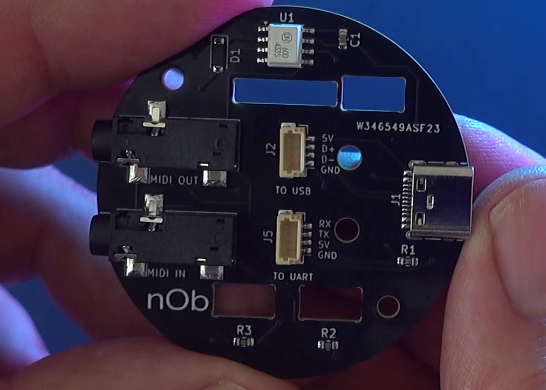

This adds MIDI TRS and USB-C ports to the nOb. This MIDI device reads chords you're playing on a keyboard and starts suggesting chords you could continue with, ordering them by probability. Supports USB and BLE MIDI (and TRS with an extension board that firmware sales will help me to make).
CAD-Custom parts and enclosures
lid-complete.stl
Jul 20,2026
110 views
nOb TRS and USB-C MIDI adapter
Adds TRS MIDI and a USB-C port to my chord sequencer, nOb
110
0
0
Published: Jul 20,2026
Standard PCB
Download Gerber file 4
BOM(Bill of materials)
Centroid file
PCBWay Donate 10% cost To Author
File Last Updated: 2026/07/20 (GMT+8)
