Components
|
|

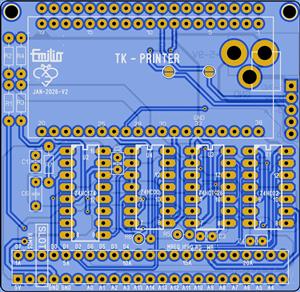

PCB ZX PRINTER INTERFACE |
x 1 | |
|
|
74HC02BQ,115 |
x 1 | |
|
|
74HCT126D,653 |
x 1 | |
|
|
74HC00BQ |
x 1 | |
|

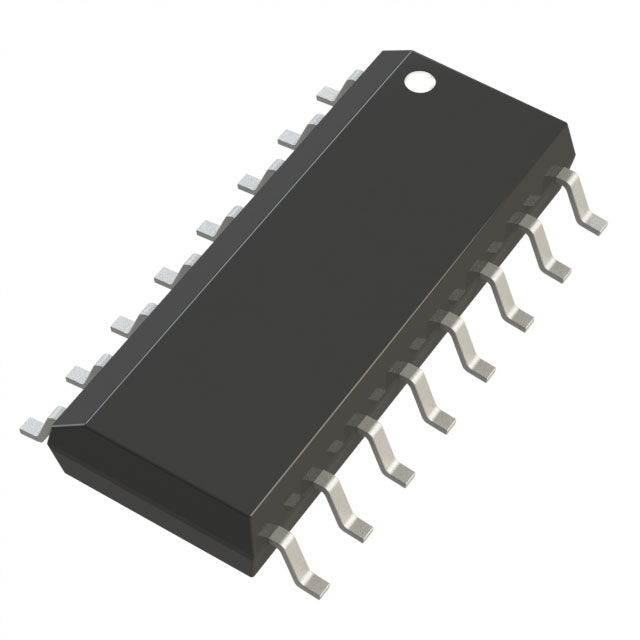

74HC174D,653Nexperia USA Inc.
|
x 1 | |
|
|
ESP32-WROOM-32E-N8R2 |
x 1 |
Description

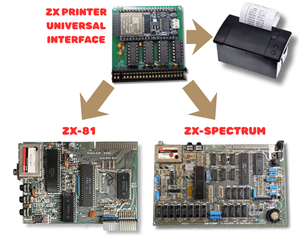

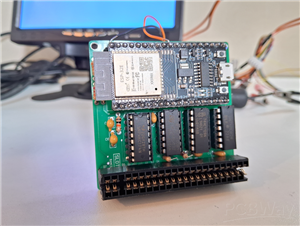

ZX PRINTER INTERFACE - MINI THERMAL PRINTING OPTION TO ZX81

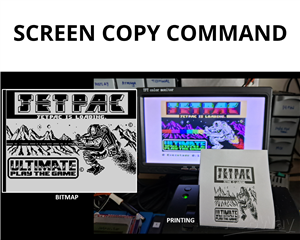

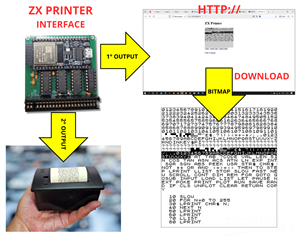

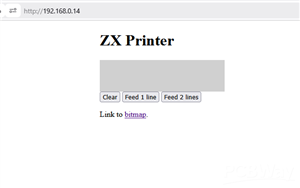

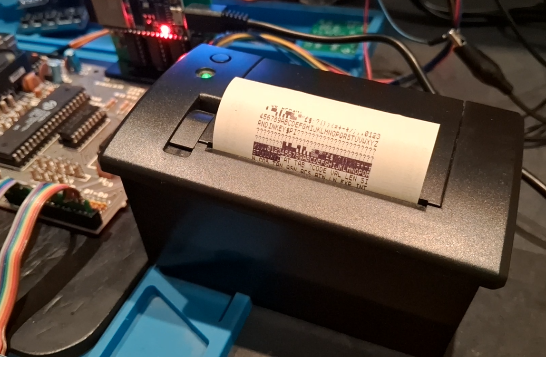

This project allows your ZX81 to print using a mini thermal printer used for credit cards! It requires few components! As shown in the image, you can print or view the image via HTTP.
You can see more details at: https://ekaww4.wixsite.com/tecnologia/post/projeto-23-zx-printer
You can see details in this video: https://youtu.be/VcBBftC0tG0?si=FDvGTFQkwRcgn4Mx
Feb 12,2026
17 views
ZX PRINTER INTERFACE - MINI THERMAL PRINTING OPTION TO ZX81

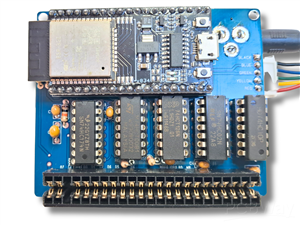

This is an interface to ZX81 to add an option to use a mini thermal printer to printing data on ZX81!
