Description
Year 10 graduation cards

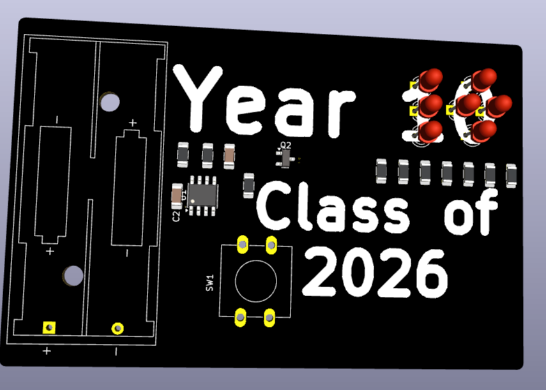

This is a little project that I made for my class next year as our graduation gift. I made it because I love designing electronics and want to use my talent to bless the class with a little reference sheet for science. It uses a 555 timer to blink 7 leds positioned over the 10 in year 10 silkscreened text.
Schematic and Layout
Y10 grad cards.kicad_sch
Y10 grad cards.kicad_pcb
Dec 19,2025
116 views
Year 10 graduation cards
I have made a simple circuit that uses a 555 timer to blink the 10 in Year 10 on the board. it uses 2 aaa batteries to power it.
