Xbox 360 Viper Dual Nand Phat Adapter
This is the GERBER files for the Xbox 360 Viper Dual Nand, this is a Quick Solder Board adapter that allows the use of a Phat console, primarily the Jasper with the 16MB nand.
Mar 06,2026
11 views
Xbox 360 Viper Dual Nand Phat Adapter

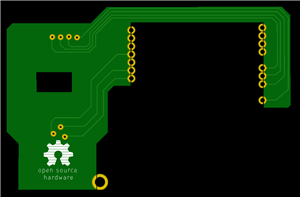

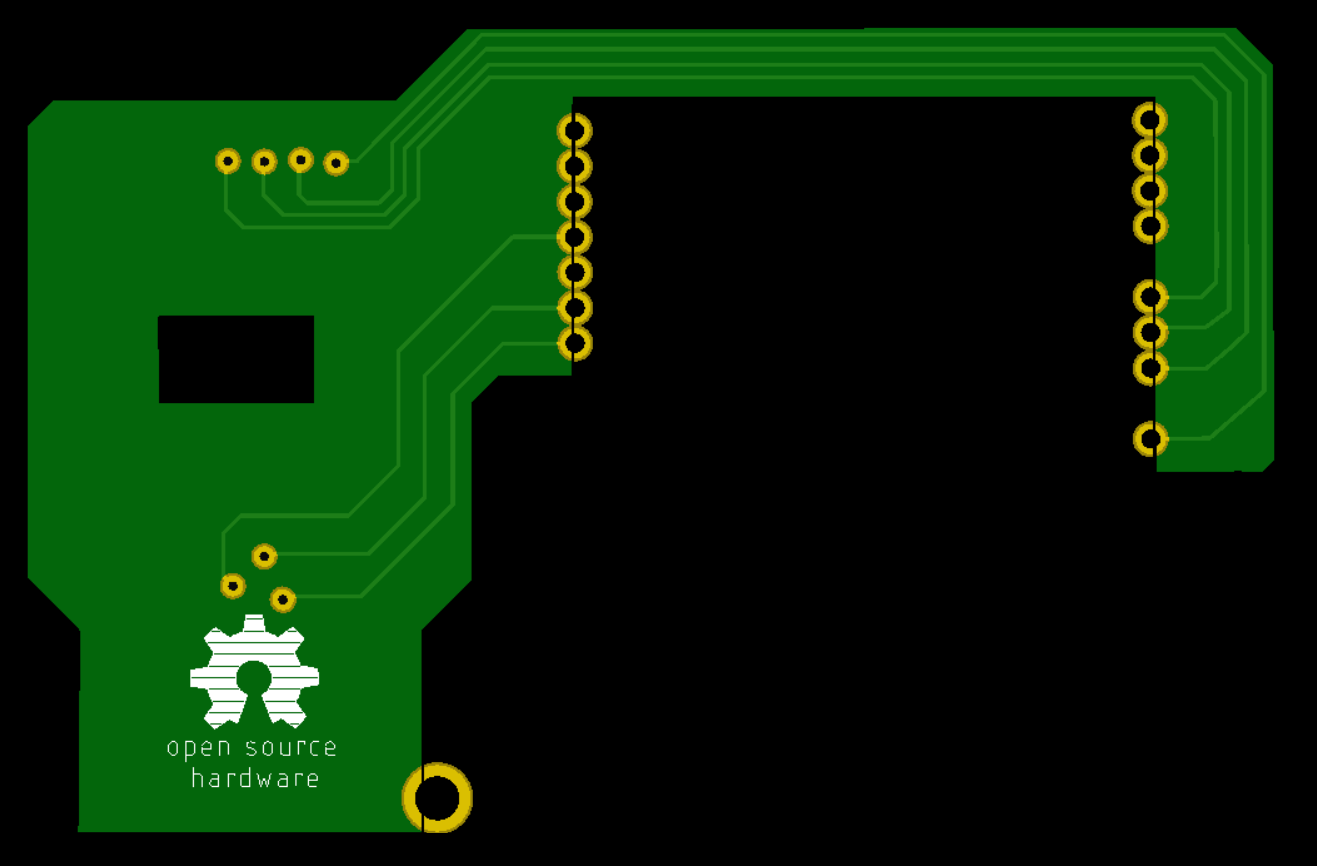

2 Layers PCB 29 x 45 mm FR-4, 0.8 mm, 1, HASL with lead, Green Solder Mask, White silkscreen

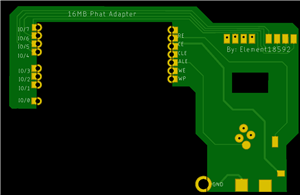

A adapter board for the Xbox 360 dual nand Viper product.
This allowed the use on Jasper 16MB consoles.
