Xbox 360 Trigger Buttons for DMG-103/104
A DMG-103 is a Nintendo DS Lite motherboard, that is retro-fitted into a Gameboy DMG shell to play Gameboy advance games natively. However, to take full advantage of certain GBA titles you'll need to add trigger buttons to the DMG shell. Traditionally, this has been done using panel-mount momentary push buttons. While functional, these buttons are ergonomically awkward, as they must be pressed toward the player rather than downward like standard GBA triggers.

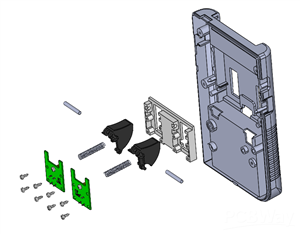

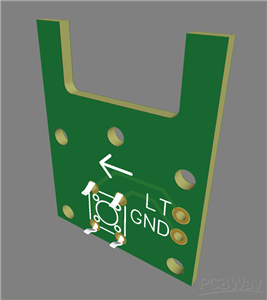

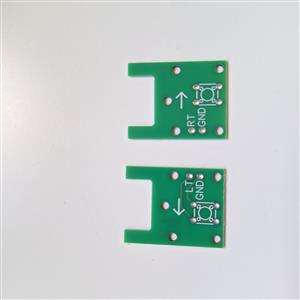

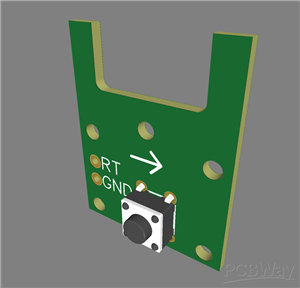

This mod was developed to solve that problem. Using a combination of off-the-shelf parts, 3D-printed components, and two custom PCBs, you can integrate Xbox 360-style trigger buttons into the DMG shell. These triggers are pressed downward for a more natural, comfortable feel—perfect for completing your DMG-103 build.
Xbox 360 Trigger Buttons for DMG-103/104
