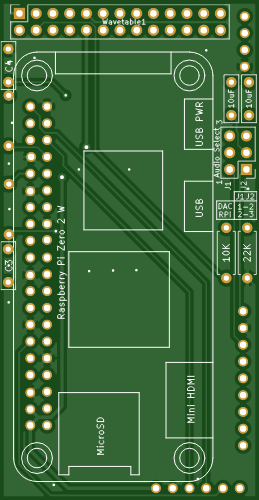

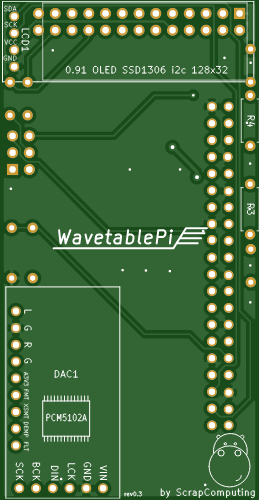

WavetablePi PCB
This is a free open-source project based on MT-32 Pi and created by Scrap Computing.
Source: https://github.com/scrapcomputing/WavetablePi
MT-32 Pi: https://github.com/dwhinham/mt32-pi
I've made several of these and they work great!
I uploaded the gerber files here to make it easier for future searchers to order Scrap Computing's great PCB!
WavetablePi PCB
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
Please review the designer's notes (e.g., PCB thickness) and select the appropriate options.
PCBWay is not responsible
for issues caused by unsuitable parameter selections.
For more important ordering information, please refer to
