3PDTv2_share

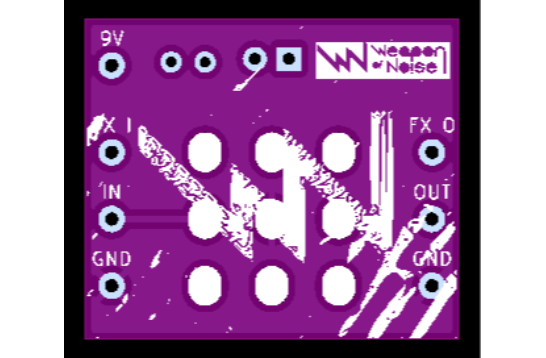

2 Layers PCB 24 x 28 mm FR-4, 1.6 mm, 1, HASL with lead, Purple Solder Mask, White silkscreen
PCB for 3PDT wiring.
