Description

IPS ETD39 - 2

### DESCRIPTION

This board is designed specifically for the IR2153 chip with output characteristics in a load of 42v 12a (max current up to 14A for a long time). A current protection on the thyristor was designed, but it did not work properly, so dare a current transformer!

This motherboard is the predecessor of IPS IR2153 ATX2.1. The dimensions of the board are reduced to 99 * 70mm for more compact placement in the future case of the device. There is a metallization of all the holes, so it will now be difficult to snatch the nicks from the board. Improved transformer ventilation by milling additional holes.

### TECHNICAL DETAILS / COMPONENTS

### LEARN / TOPIC / BUILD INSTRUCTIONS

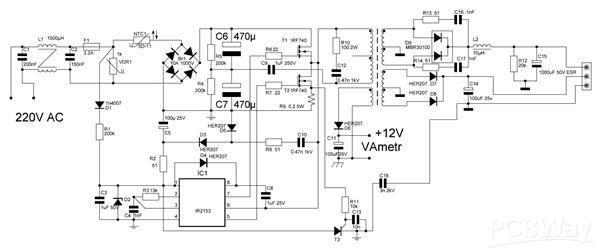

Schematic and Layout

https://drive.google.com/open?id=1sN4jTDK1IQoBeFhJ5sJyqKRUlTQVBU3x

Oct 01,2018

9,695 views

IPS ETD39 - 2

2 Layers PCB 70 x 99 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen

9695

16

1

6.27 (14)

Published: Oct 01,2018

Standard PCB

PCBWay Donate 10% cost To Author

Only PCB

Project images are for reference only. Actual production is based on the manufacturing files on the project page. Please review the designer's notes (e.g., PCB thickness) and select the appropriate options. PCBWay is not responsible for issues caused by unsuitable parameter selections.
For more important ordering information, please refer to Read More

Copy this HTML into your page to embed a link to order this shared project

Copy

Under the Attribution-ShareAlike (CC BY-SA) License.
