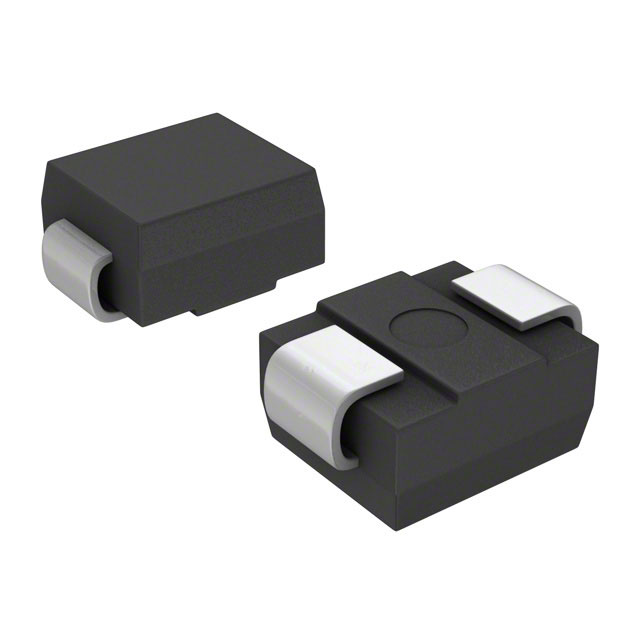

	SS23S-E3/61T Vishay General Semiconductor - Diodes Division	x 4
	SM04B-SRSS-TB(LF)(SN) JST Sales America	x 1
	IRLR2905TRPBF Infineon(英飞凌)	x 4
	RC0603FR-07330RL	x 1
	RC0603FR-0710KL	x 4
	RC0603FR-0733RL	x 4
	53261-0571 Molex	x 1

Description

Haptic Bits Lab BASE Board SMD

The Haptic Bits Lab is a playful prototyping toolkit that brings soma design theory into practice. Whether you’re a designer, developer, or researcher, it helps you create richer experiences by engaging your whole body in the design process. No prior technical knowledge required - just curiosity. More advanced users can dive deeper and build their own explorations.

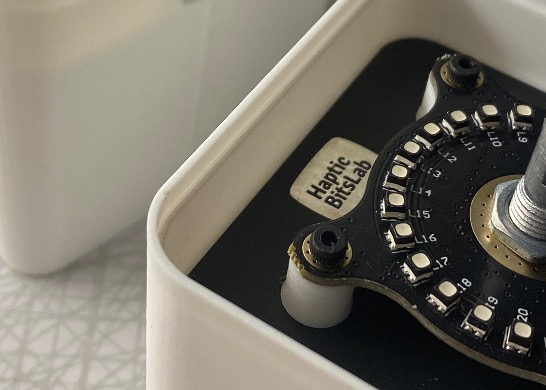

The Base board is the carrier of additional components such as breakout boards from Adafruit and LED rings from DUPPA.

For more details look at the repository: https://github.com/forsslund/hbits

Download Gerbers Download BOM(Bill of materials)

Jan 13,2026

13 views

Haptic Bits Lab BASE Board SMD

2 Layers PCB 57 x 120 mm FR-4, 1.6 mm, 1, HASL lead free, Matt black Solder Mask, White silkscreen

The Haptic Bits Lab is a hands‑on prototyping kit for exploring vibration, heat, and shape‑change through the body.
