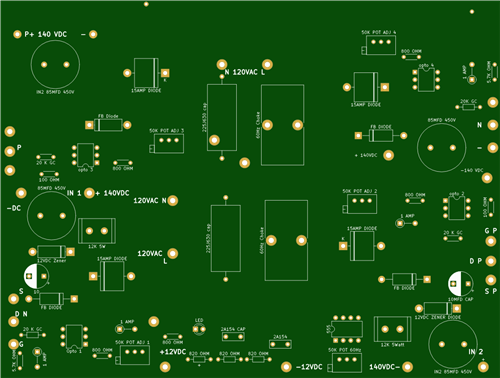

primetwofetv16
Two new FET working parts list update June 8th 2024 Grid Works.
1 P channel Mosfet IXTK40P50P
1 N channel Mosfet FGA40N65
2 12 Volt zener diodes 5Watt 1N5349
1 555 timer through hole 8 pin
2 15Amp diodes STTH1502DI or 4 10Amp diodes 10A10
2 Flyback diodes 10 amp 200 volt rated 10A10
3 1Amp diodes 1N4007
20K resistor may be needed for 60Hz pot additional for low hertz.
1 5.7K resistor
1 30K resistor gate close for P FET
1 40K resistor gate close for N FET
3 50K good quality pots
2 2A154k small green ceramic capacitors
2 optic couplers led input with Darrlington C/E output 4N33M
3 820 ohm resistors
1 12VDC power supply must be isolated from earth ground/grid power
1 Inverter case with fan or heat sinks with fan
Each 140-160 VDC solar array needs 5Amp glass fast blow fuse and holder.
2 12K 5Watt resistors
2 10MFD 35volt capacitors
1 225J630 filter capacitor
1 60hz 2,000 watt choke 2100 HT V/H USE LC calculator for 60Hz 2,000 watt
2 85 Mfd capacitors 450Volt
2 800ohm resistors
2 10-15 amp glass fast blow fuse and holders for Inverter output 120 VAC 60Hz.
END
