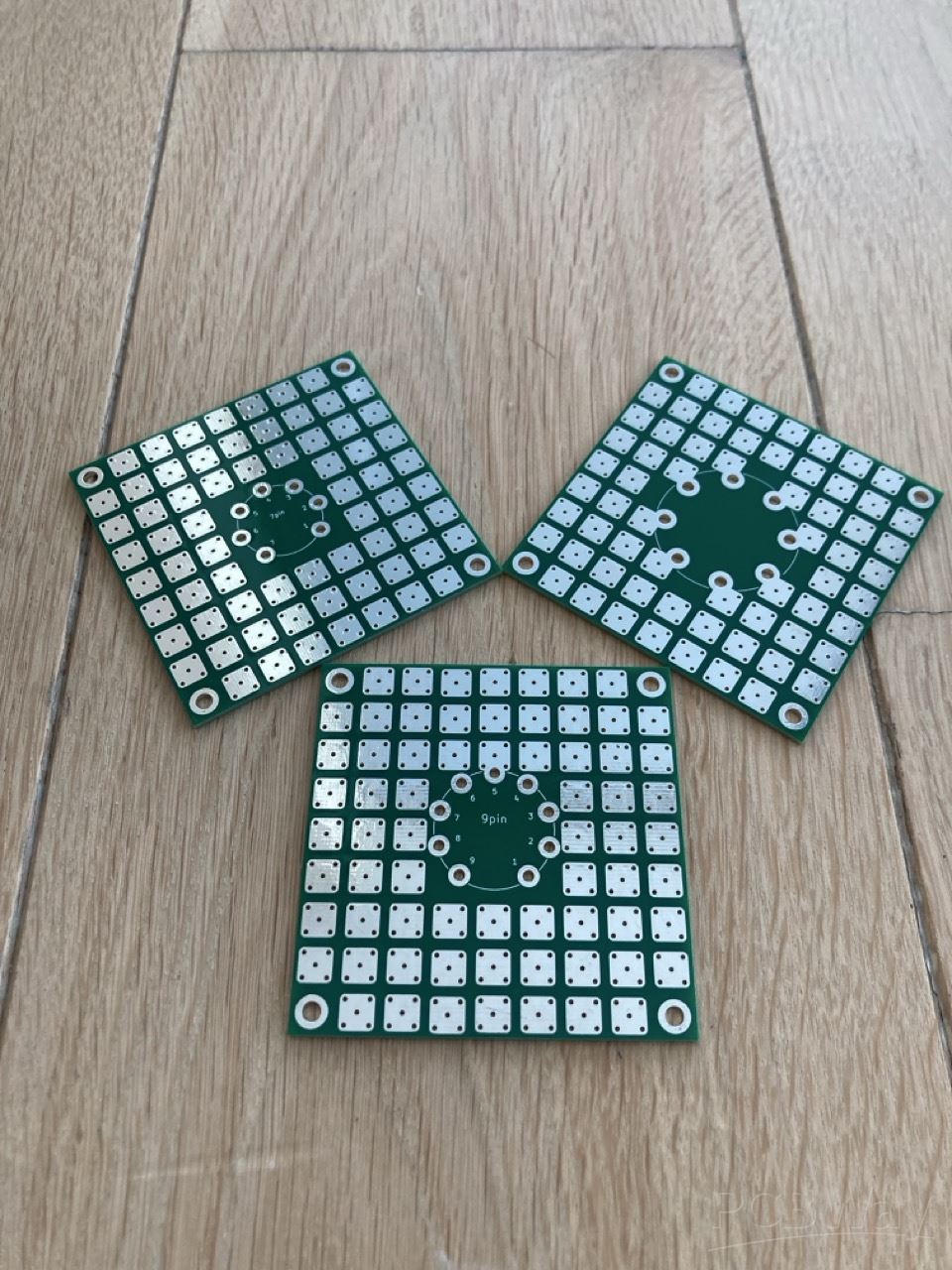

9 Pin B9A Socket Development Board

2 Layers PCB 68.68 x 68.68 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen

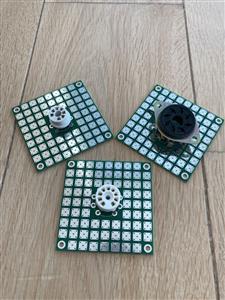

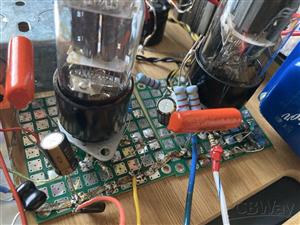

Specially designed board to speed up development and testing tube amplifiers and preamplifiers. This one is for 9 Pin B9A socket.
627
0
0
Published: Nov 25,2024
